Turbine Projector Shroud

2 Reviews
Questions?

Brand: Morimoto

B-SHR-TURBINE-TRS

$40.28

PRODUCT OPTIONS

PART #: 1 x S340



Easy Return

DESCRIPTION

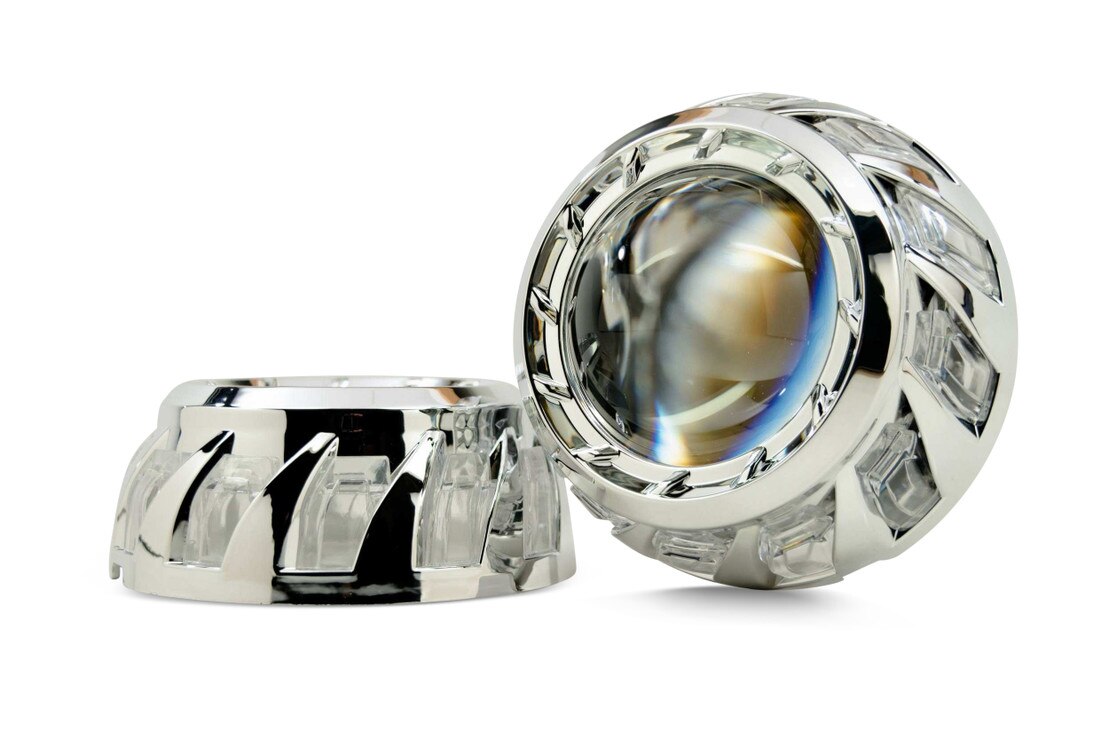

Turbine projector shrouds offer a robust solution for customizing projector retrofits. Available in full size, they feature an internal acrylic diffuser and halo tray, ensuring optimal light distribution and customization options. Morimoto shrouds stand out for their high-quality plastic construction and durable metalized chrome finishes, outperforming cheaper alternatives prone to deformation and flaking. For ease of installation, centric rings are recommended, along with JB Quik Weld to prevent loosening over time. Additionally, LED halos such as the Profile Pivot and Profile Pixel systems provide further customization, with DRL-vents for unique lighting effects. Trimming shrouds is a common yet manageable task, facilitated by their plastic composition and tools like the Dremel hand tool with EZ Lock cutting wheels.

FEATURES & BENEFITS

  • Customizable Design: Turbine shrouds offer robust customization for projector retrofits.
  • Optimal Light: Full-size shrouds feature an internal acrylic diffuser and halo tray for even light distribution.
  • Durable Construction: Morimoto shrouds boast high-quality plastic and durable chrome finishes.
  • Easy Installation: Centric rings and JB Quik Weld ensure simple, secure installation.
  • Enhanced Customization: LED halos like Profile Pivot and Pixel systems offer further customization with unique lighting effects.

WHAT’S INCLUDED

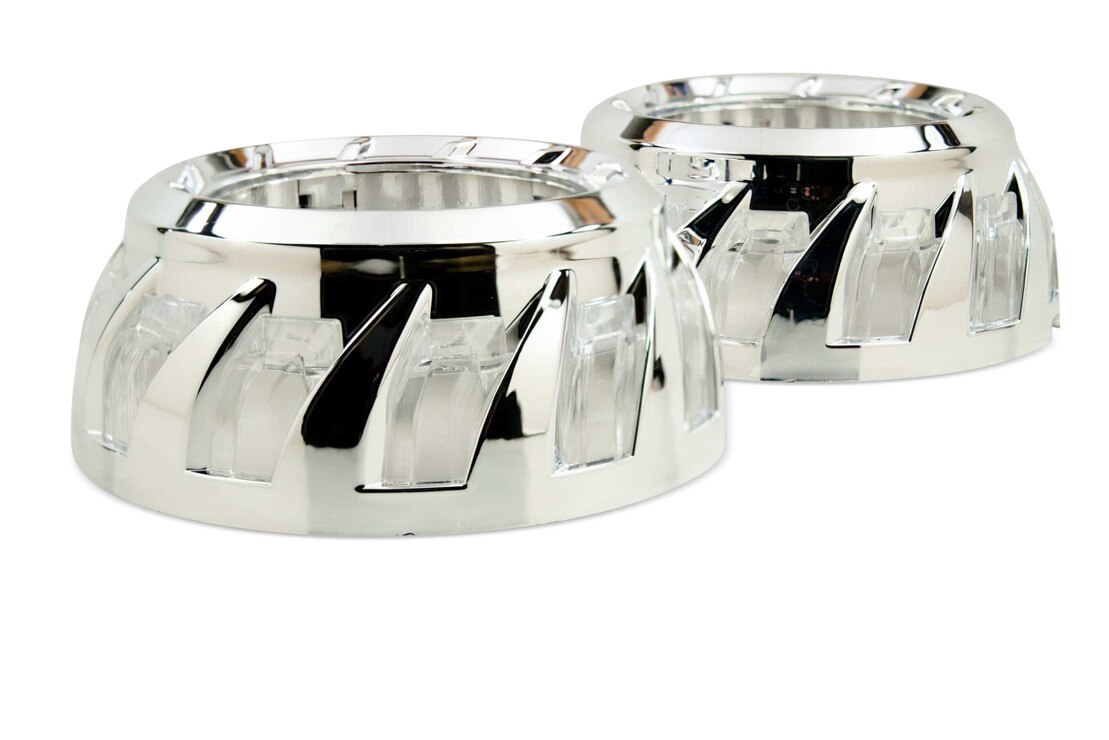

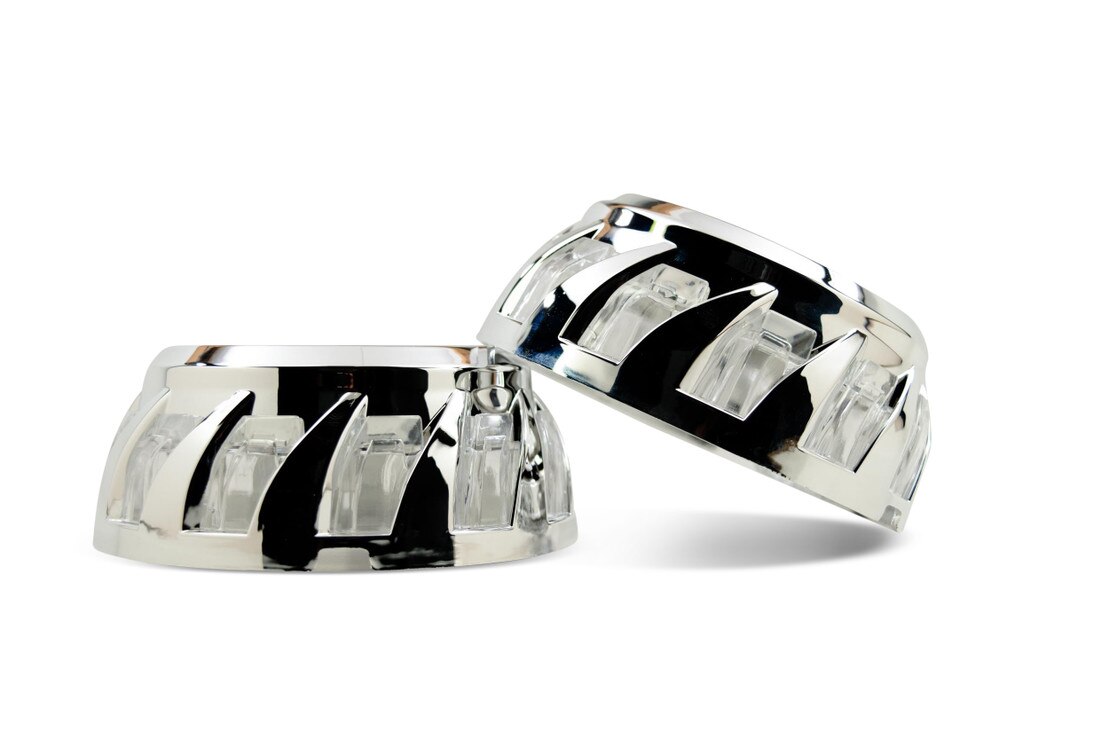

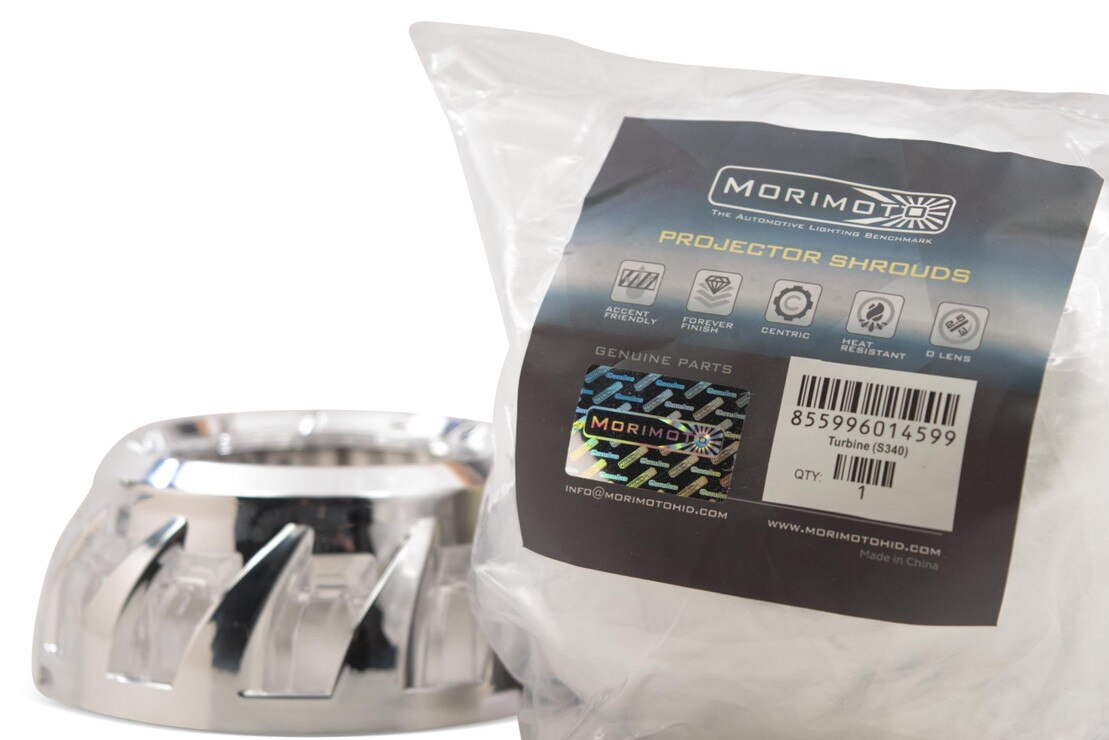

  • Shrouds: 2x (One Pair) Turbine Projector Shrouds

  • Optional Accessories: Centric Rings

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Dimensions: 121mm DIA, 51mm D

  • Halo Sizing: 80mm (Front), 110mm (Vent)

  • Finish: Forever Finish Chrome

LINE DRAWINGS

COMPATIBILITY

  • MORIMOTO PROJECTORS: All except Matchbox and FX-R

  • OEM PROJECTORS: Most except TL, LS430, LS460, Q45

  • LENS DIAMETERS: 2.5in and 3in Compatible

  • MOUNTS WITH: Centric Rings and/or JB Quik Weld

INSTALLATION DOCUMENTS

Full Size Turbine: The Mini Turbine was an immediate hit when we saw it, but it didn't fit every projector. Enter the bigger, badder full-size Turbine shrouds! Complete with internal acrylic diffuser and halo tray, this one's a winner in our books!


In Comparison: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: Morimoto shrouds are made from the highest quality plastic and have by far the most durable metalized chrome finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their chrome finish easily flakes off.

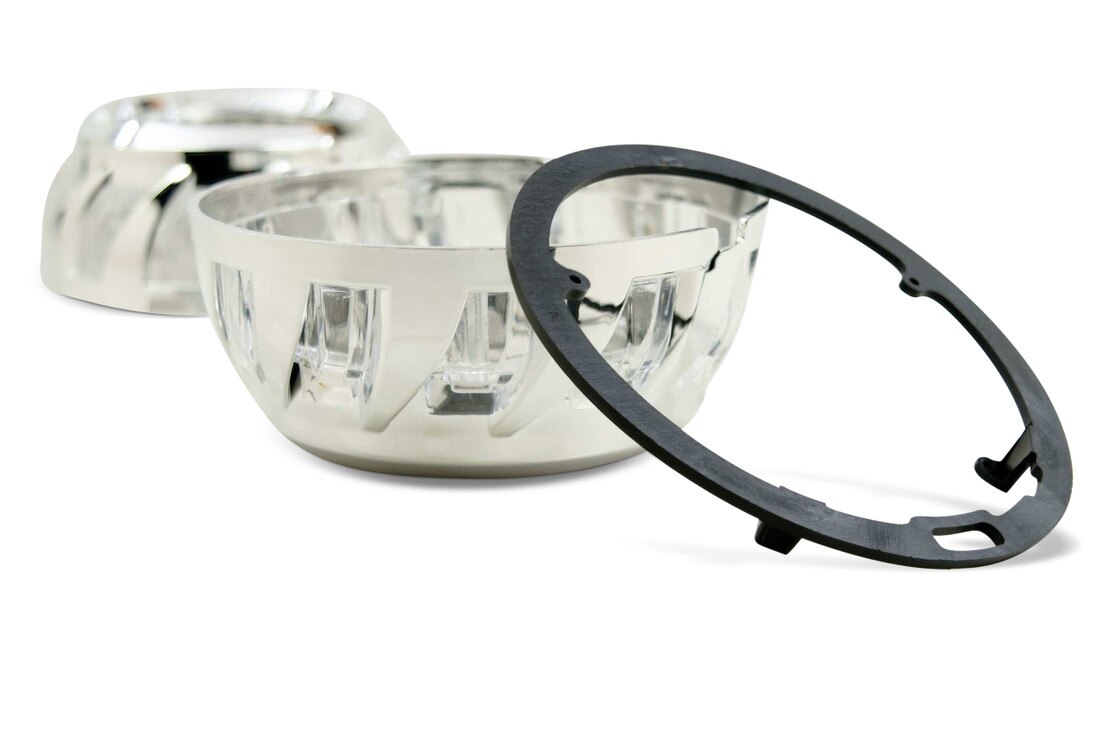

Mounting: Centric Rings are not included by default, but are highly recommended to improve ease of installation on many projectors. The Centric Rings are simple reducers that clip into the shroud to reduce the inside diameter, making them more of a "press fit" onto the lens holder of the projector. JB Quik Weld is also recommended in order to prevent the shrouds from vibrating loose over time.

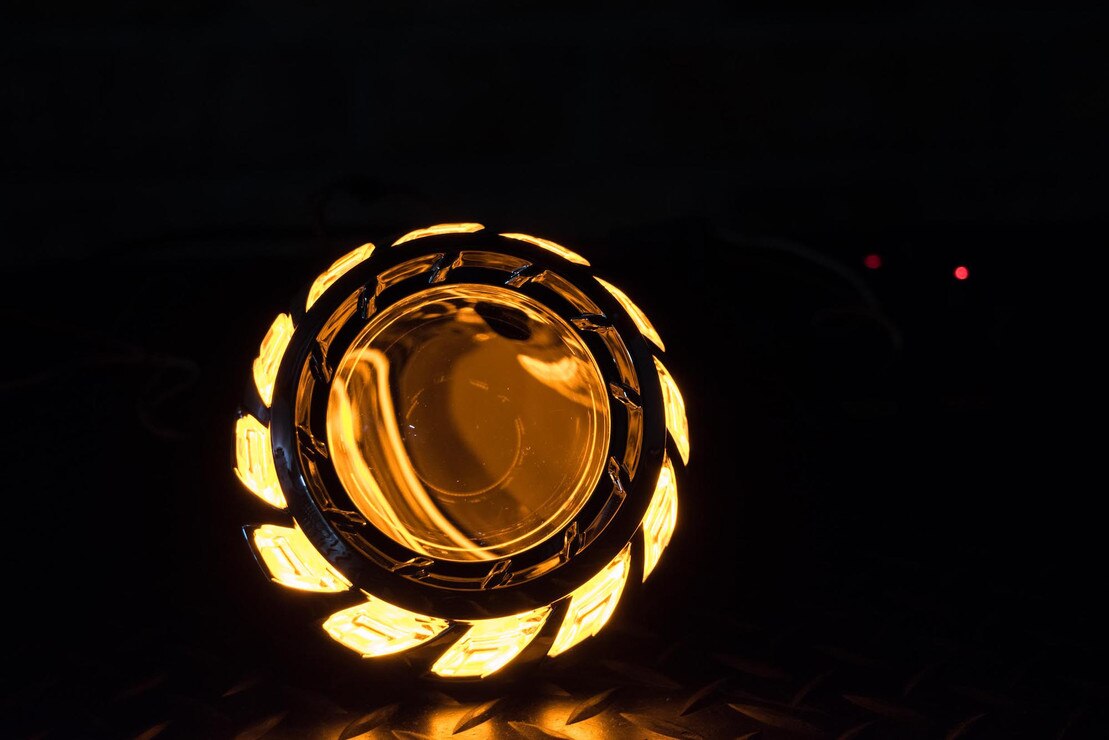

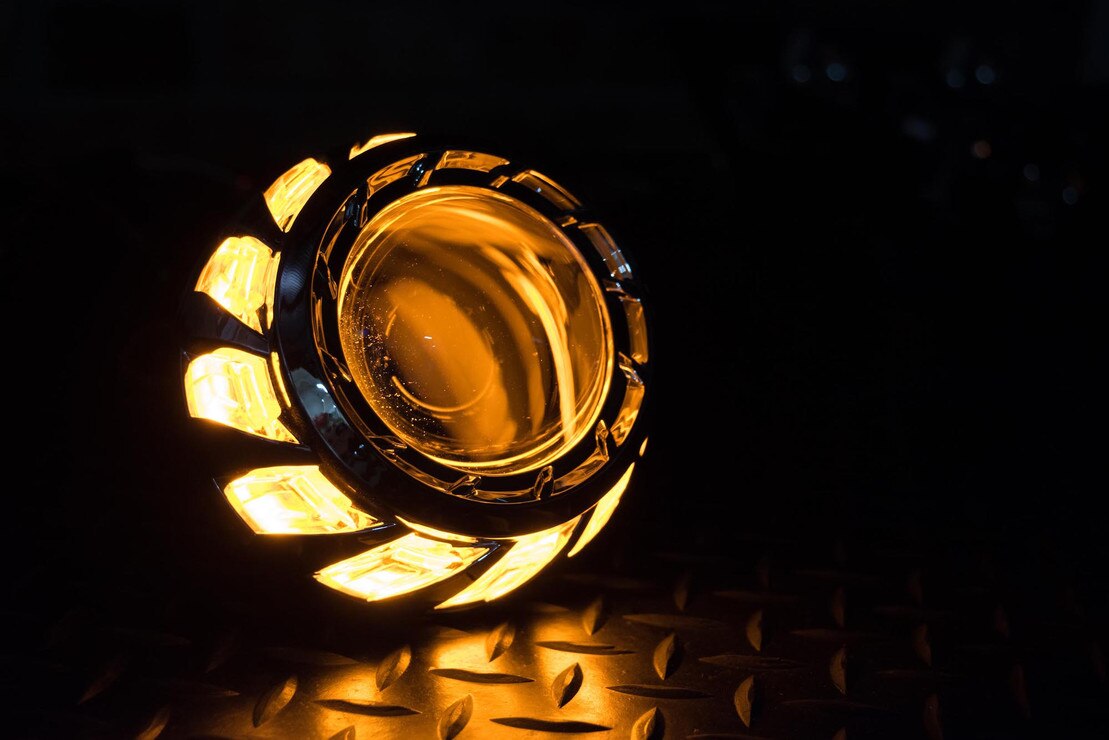

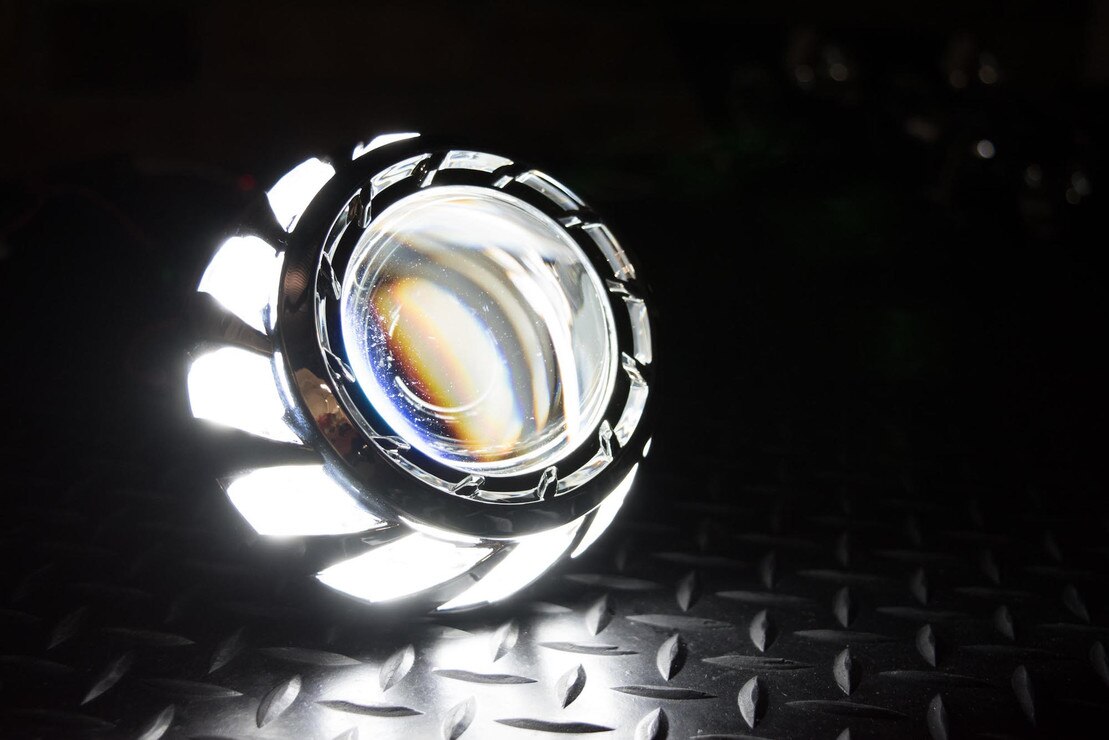

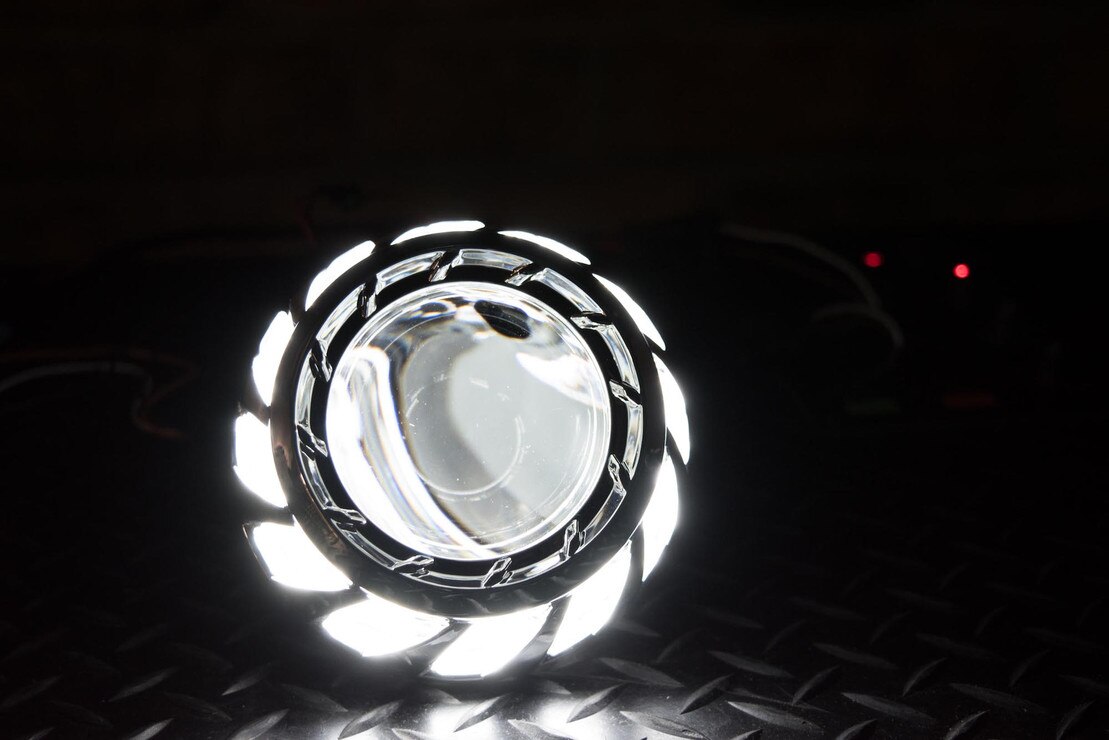

LED Halos: Are a unique and effective way to further customize the look of your projector retrofit. The Profile Pivot (switchback) and Profile Pixel (RGB) systems are easy to mount on the front of your shrouds, are reliable, and of course awesome looking. To determine which size is best for you - check out the size-guide in the "In Action" images section below. These shrouds feature DRL-Vents that will glow with light if you wanted to do something a bit different and mount the halos inside.


Trimming: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector, or fit within the geometry of your headlight housing; it's normal. Luckily, they're made of plastic - making that easily possible. We recommend a Dremel hand tool with EZ Lock cutting wheels to make the job easy.
