Square: PanaSquare Projector Shroud

(0) No Reviews yet
Questions?

Brand: Morimoto

B-SHR-PANASQ-TRS

$9.60 Original Price:$11.3015% OFF

PRODUCT OPTIONS

PART #: 2 x S270



Easy Return

Items in this Kit are on CLEARANCE!
Clearance Items are Non-Refundable

DESCRIPTION

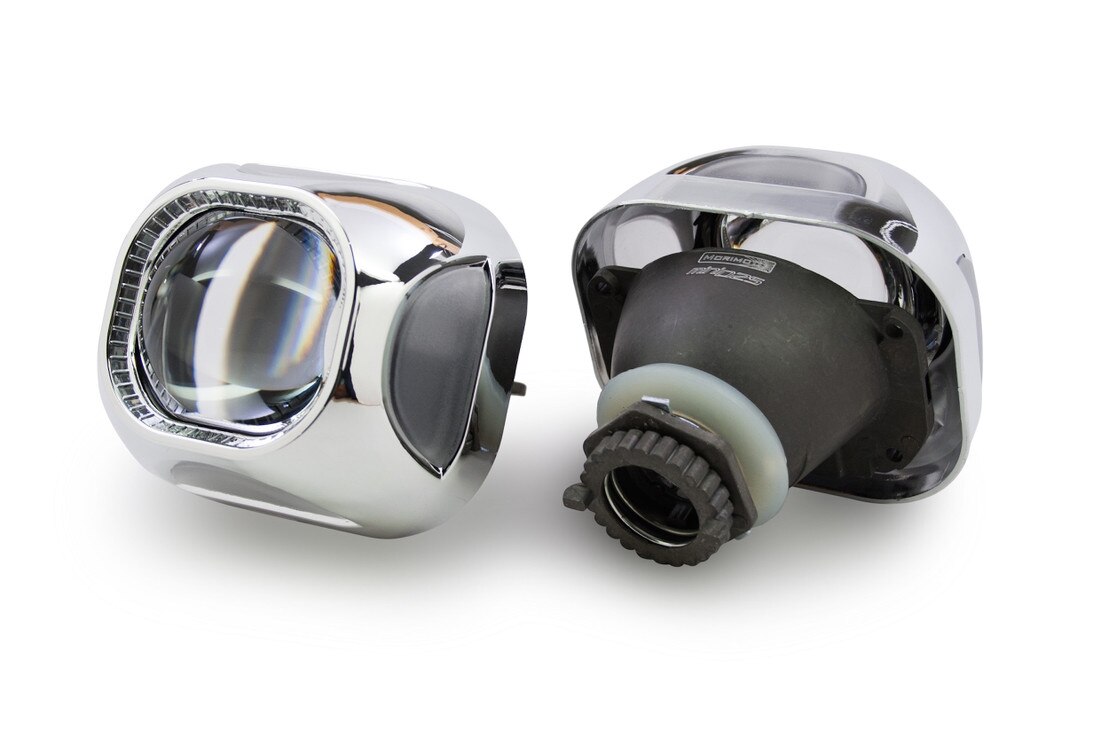

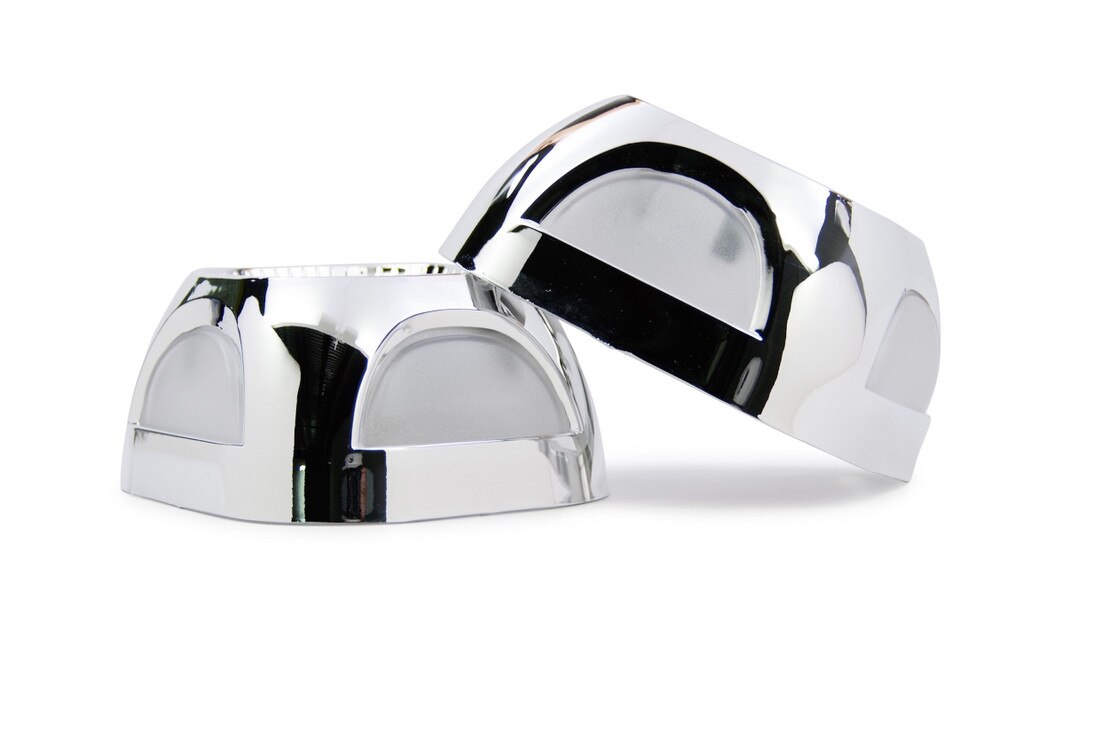

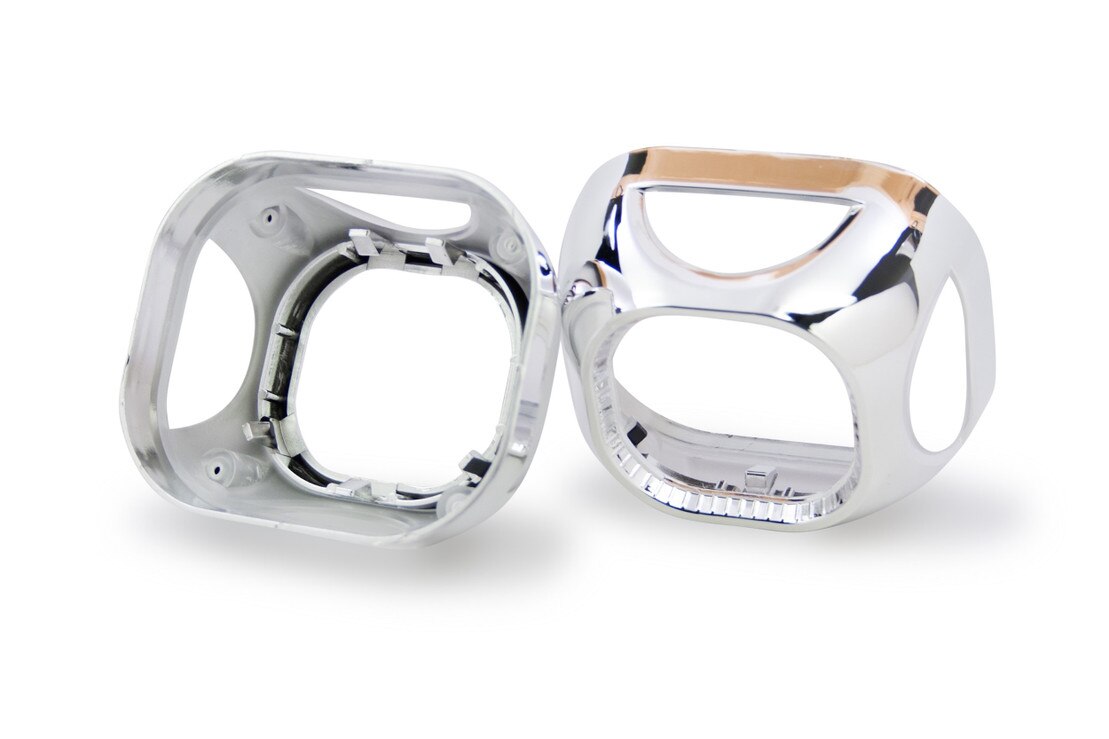

The PanaSquare projector shrouds offer a sleek and modern solution for Square Lens Retrofits, expanding on the popularity of the Panamera round shrouds. With symmetrical semi-circular acrylic accents on each face, they provide a clean and stylish aesthetic for Square Lens applications. Specifically designed to fit Morimoto Mini D2S 4.0 or 5.0 with the "Square Lens" option, they ensure compatibility and ease of installation. Constructed from high-quality plastic and featuring durable metalized chrome finishes, these shrouds stand out for their longevity and resistance to deformation and flaking. For secure mounting, JB Quik Weld or similar fast-curing epoxies are recommended, ensuring stability over time. Additionally, the shrouds are trimmable to accommodate various projector and headlight housing geometries, making them versatile and adaptable for retrofitting projects.

FEATURES & BENEFITS

  • Modern Design: Sleek semi-circular acrylic accents.
  • Compatibility: Fits Morimoto Mini D2S 4.0 or 5.0 with "Square Lens".
  • Durable Construction: High-quality plastic with metalized chrome finishes.
  • Secure Mounting: Recommends JB Quik Weld for stable installation.
  • Trimming Capability: Easily trimmable to fit various projector and headlight geometries.

WHAT’S INCLUDED

  • Shrouds: 2x (One Pair) PanaSquare Projector Shrouds

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. Refunds Not Accepted.

TECHNICAL SPECIFICATIONS

  • Dimensions: 121mm W, 101mm H, 54mm D

  • Finish: Forever Finish Chrome

  • Material: High Temp Resistant Polycarbonate (Shroud), Acrylic (Clear Insert)

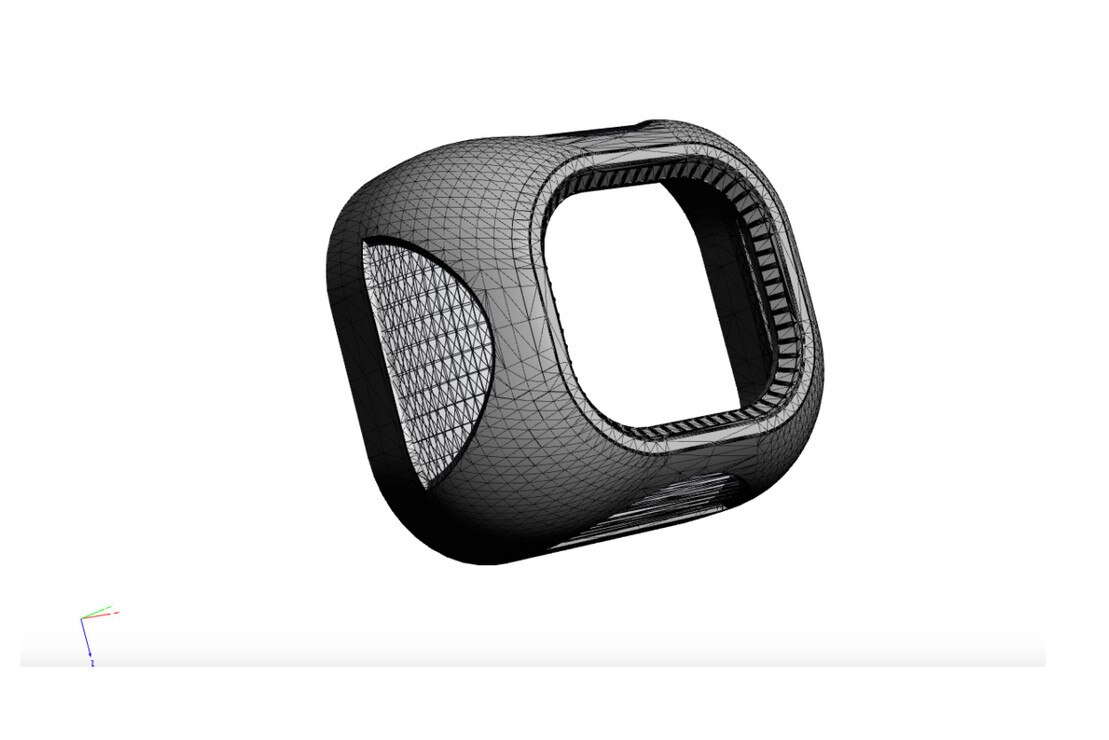

LINE DRAWINGS

COMPATIBILITY

  • MORIMOTO PROJECTORS: Mini D2S 4.0/5.0 Square Lens

  • MOUNTS WITH: Clips and JB Quik Weld

INSTALLATION DOCUMENTS

PanaSquare: The Panamera is one of the most popular round shrouds, but now the PanaSquare is available to fit Square Lens Retrofits! Using symmetrical semi-circular acrylic accents on each face of the shroud, the PanaSquare is one of the coolest and cleanest looking shrouds for their Square Lens friends.


NOTE: The PanaSquare fits only the Morimoto Mini D2S 4.0 or 5.0 with the "Square Lens" option.


In Comparison: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: our shrouds are made from the highest quality plastic and have by far the most durable metalized chrome finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their chrome finish easily flakes off.


Mounting: JB Quik Weld or another fast-curing epoxy is recommended in order to prevent the shrouds from vibrating loose over time.


Trimming: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector, or fit within the geometry of your headlight housing; it's normal. Luckily, they're made of plastic - making that easily possible. We recommend a Dremel hand tool with EZ Lock cutting wheels to make the job easy.
