DESCRIPTION

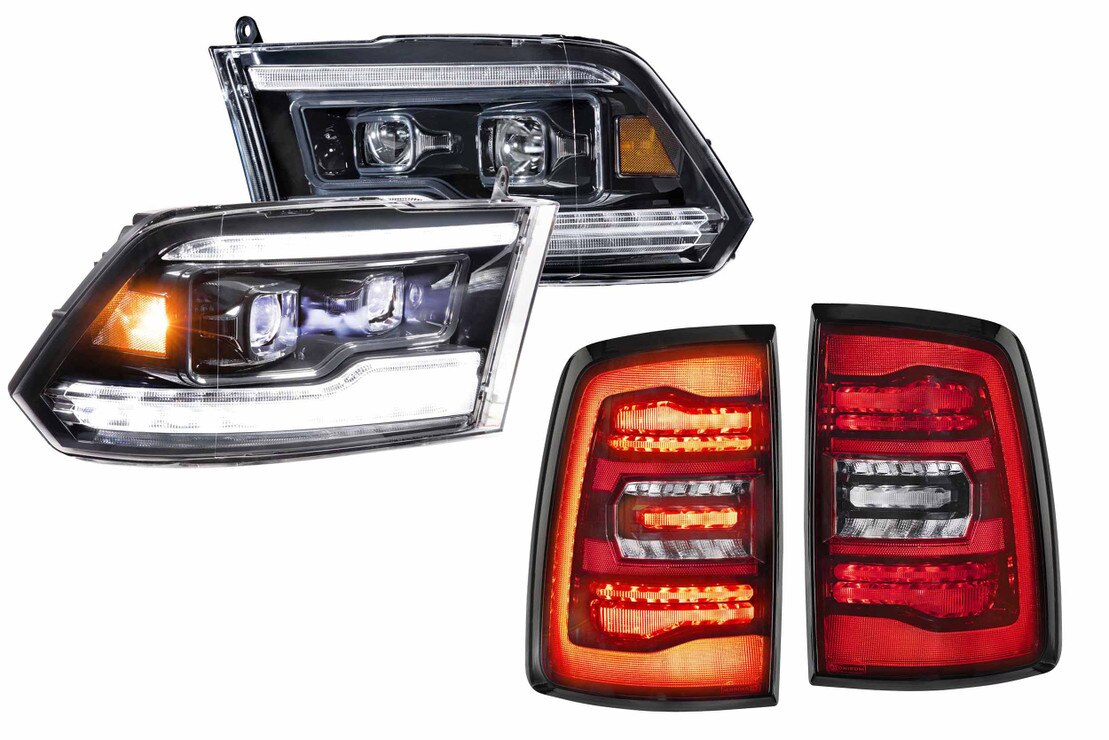

Upgrade your 09-14 Dodge Ram HD with a complete Morimoto lighting package. The previous XB headlight choices have been replaced by XB Evo, XRGB Evo, and XB Evo Hybrid options, while the existing red- and smoked-lens XB LED tail-light choices remain available.

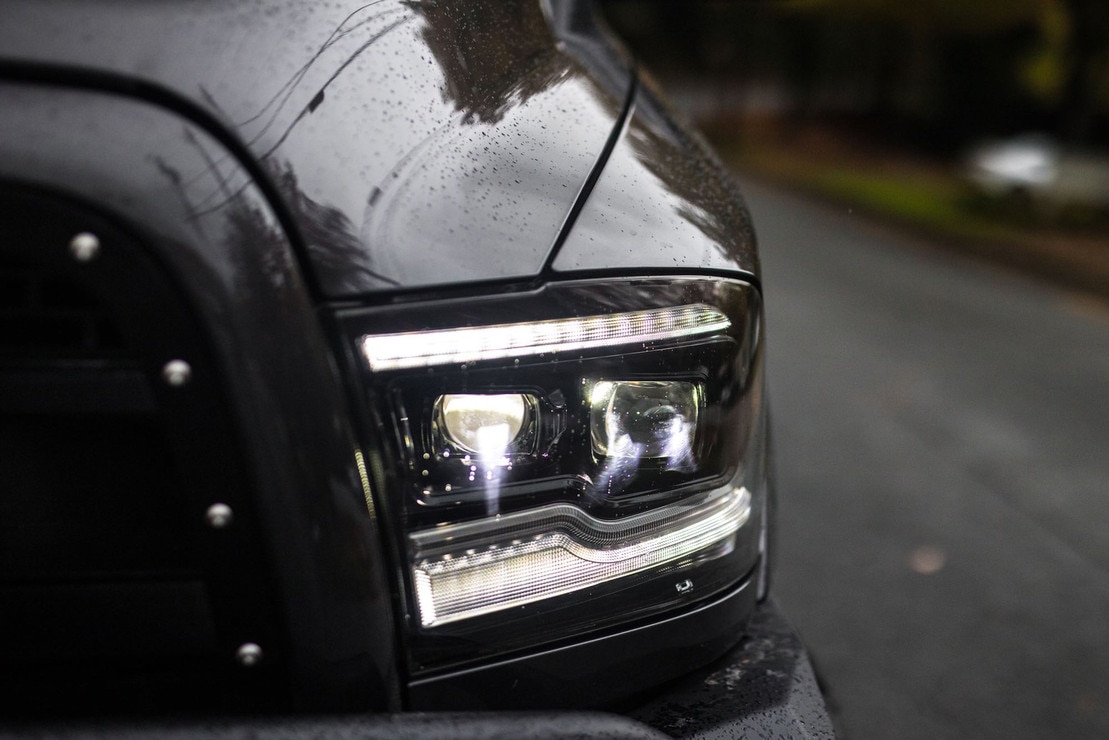

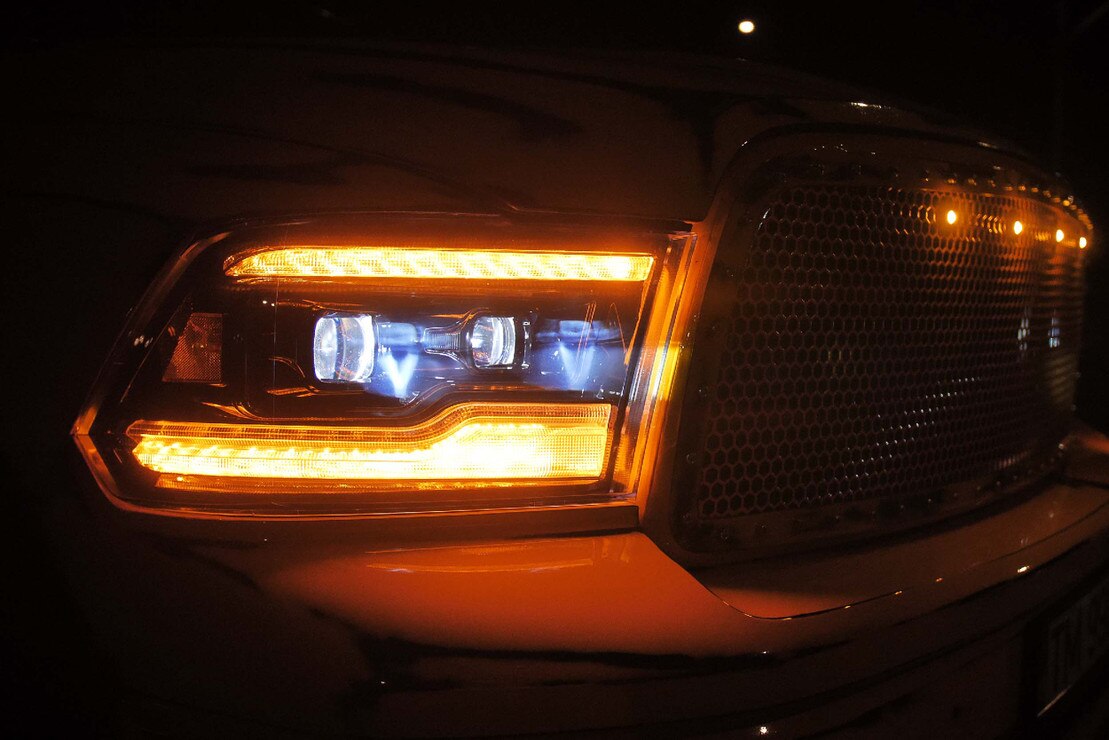

The Morimoto XB Evo headlights (LF2-520) use two Type 1 Ishida Bi-LED projectors plus a dedicated Type D high-beam assist in each assembly. Their daytime running lights can be configured in white or amber, and the turn signals can operate sequentially or with a fade-off effect. A multi-stage welcome sequence and logic-controlled 50-watt lens-heating system add premium functionality. Standard drivers are DOT and FMVSS108 compliant; optional LF2-DRVSC20 Supercharged Drivers are intended for off-road use only.
The Morimoto XRGB Evo headlights (LF2-520R) use the same dual Ishida Bi-LED and dedicated high-beam-assist platform, adding Bluetooth-controlled RGB daytime running lights. With RGB control disabled, the DRLs can be configured in white or amber, and the turn signals can run sequentially or with a fade-off effect. Because the RGB DRL system and smoked side markers are not DOT compliant, owners should follow all applicable local laws.
The Morimoto XB Evo Hybrid headlights (LF2-520Y) retain the dual Type 1 Ishida Bi-LED projectors in a streamlined piano-black package. They use a fixed white DRL and an instant-on/fade-off turn signal while omitting the full XB Evo's dedicated high-beam assist, configurable lighting modes, and lens-heating system. Standard drivers are DOT and FMVSS108 compliant; optional LF2-DRVSC20 Supercharged Drivers are intended for off-road use only.

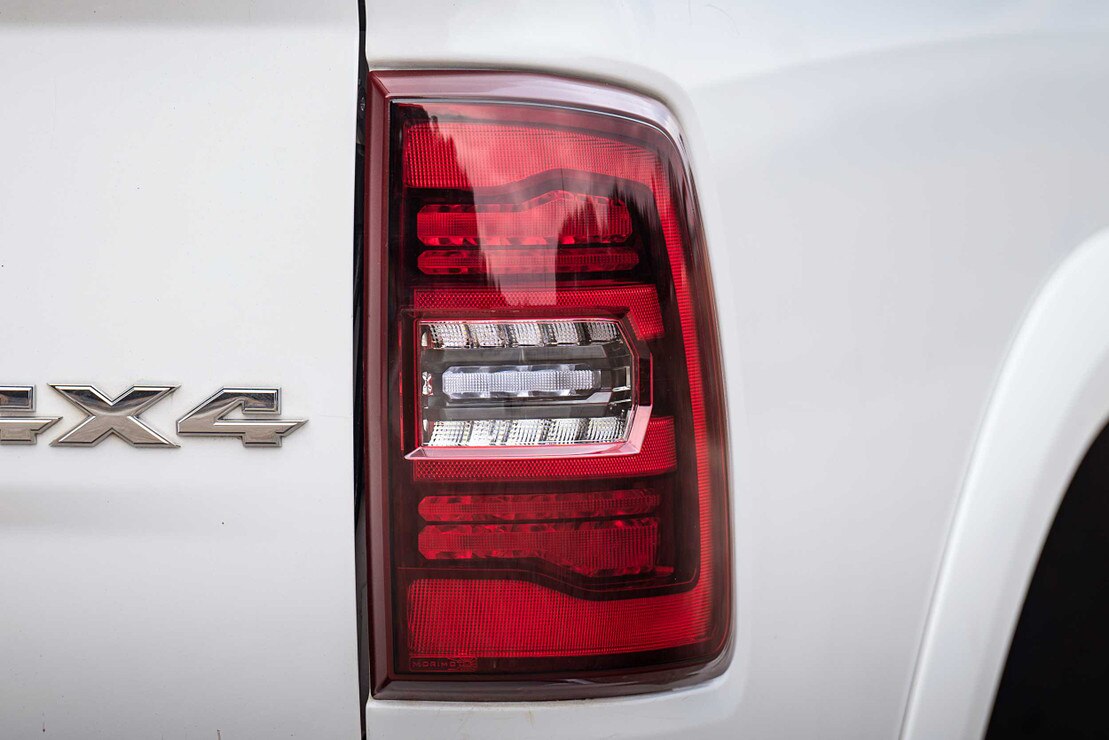

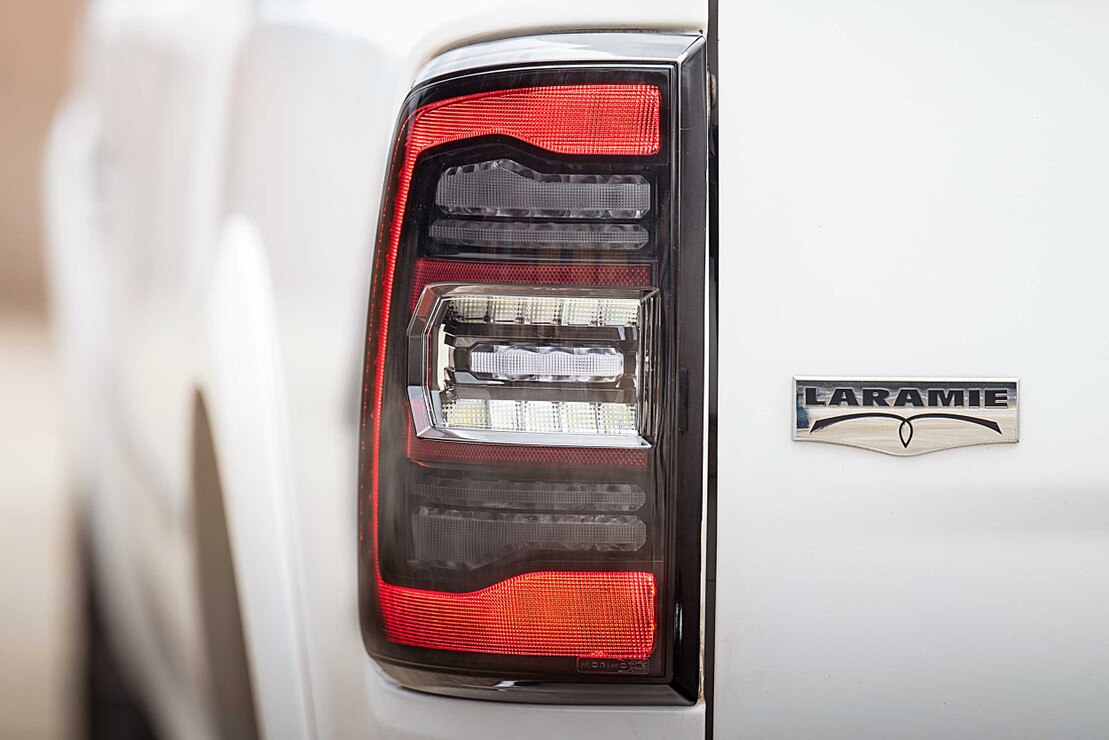

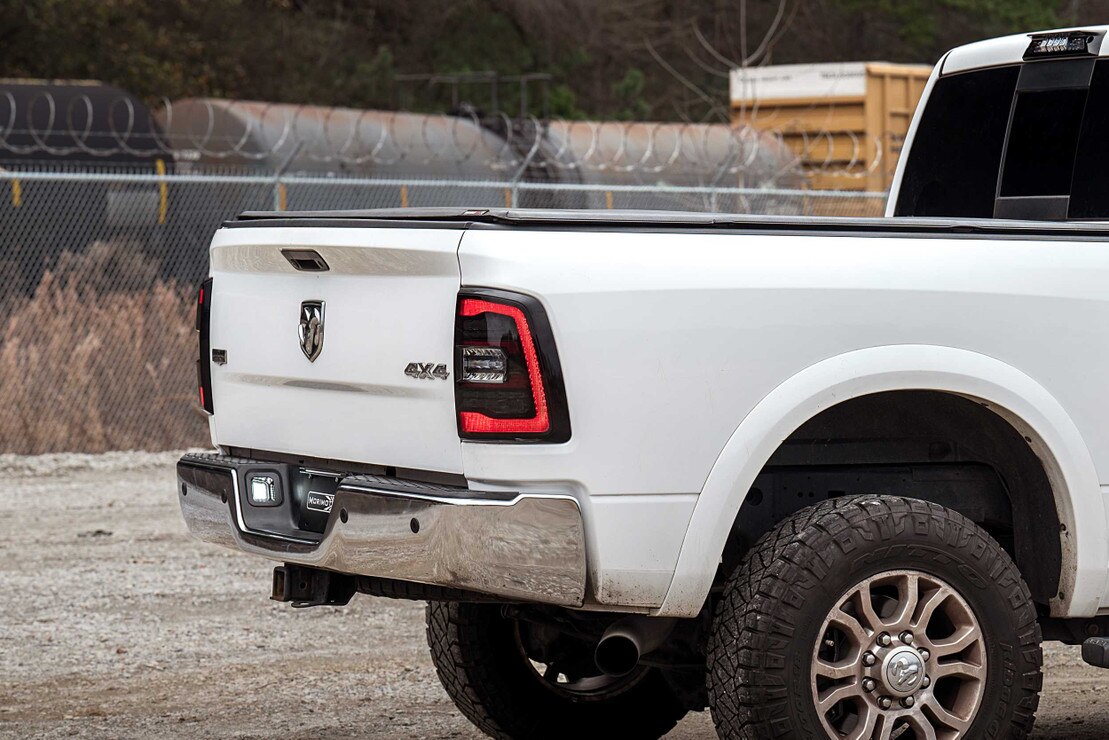

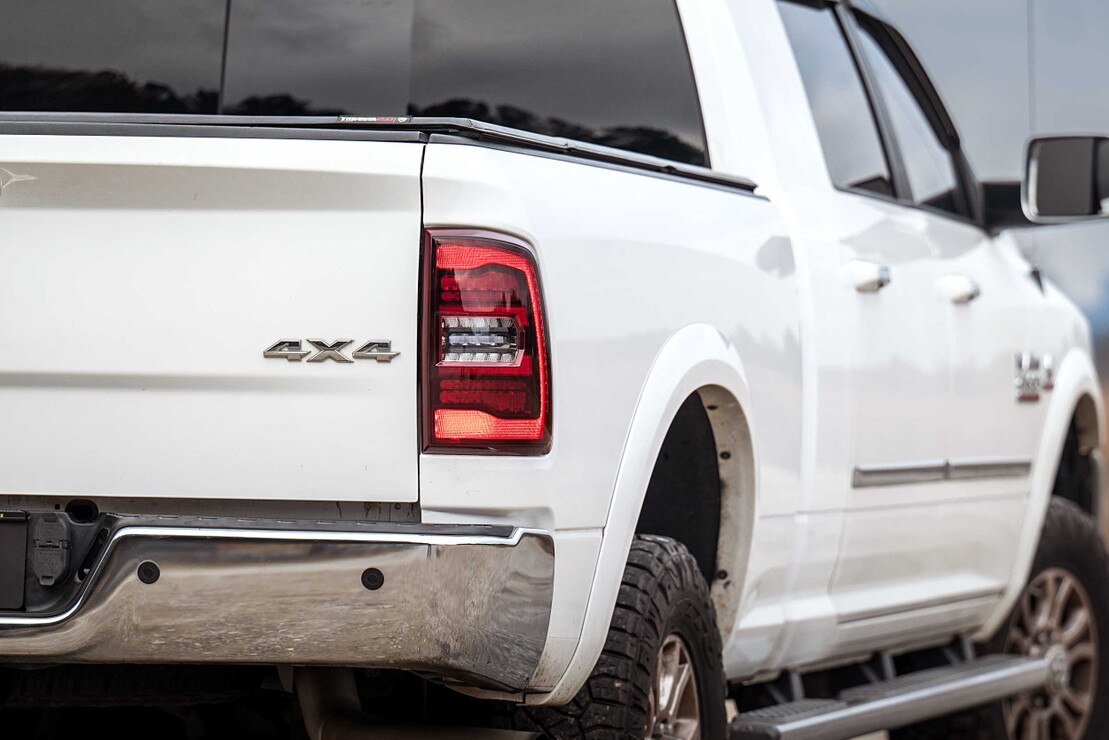

The retained Morimoto XB LED tail lights for 09-14 Dodge Ram HD remain available in red and smoked lens finishes. Their three-dimensional LED optics handle the brake and turn functions, bright LED reverse lights improve rearward visibility, and factory-style connections simplify installation. The tail lights meet applicable DOT and SAE requirements and support Morimoto's optional Backup Light Boost Bar.
FEATURES & BENEFITS
- Bright Beam: Double Bi-LED setup offers wide, intense road illumination for better visibility.
- Safe and DOT-Approved: Meets safety regulations for reliable, secure lighting.
- Easy Installation: Plug-and-play design for quick, hassle-free setup.
- Durable: UV-coated polycarbonate lens, PPS plastic housing, and aluminum heat-sinks for lasting performance.
- Stylish: Sequential LED running lights and turn signals for improved visibility and style.
WHAT’S INCLUDED
Headlight Choices :
Morimoto XB Evo LED Headlights: 09-14 Dodge Ram HD (Selectable White / Amber DRL) Click for Details
Morimoto XRGB Evo LED Headlights: 09-14 Dodge Ram HD (RGB / White / Amber DRL) Click for Details
Morimoto XB Evo Hybrid LED Headlights: 09-14 Dodge Ram HD (White DRL) Click for DetailsTail Light Choices :
Morimoto XB LED Tail Lights: 09-14 Dodge Ram HD (Red Lens) Click for Details

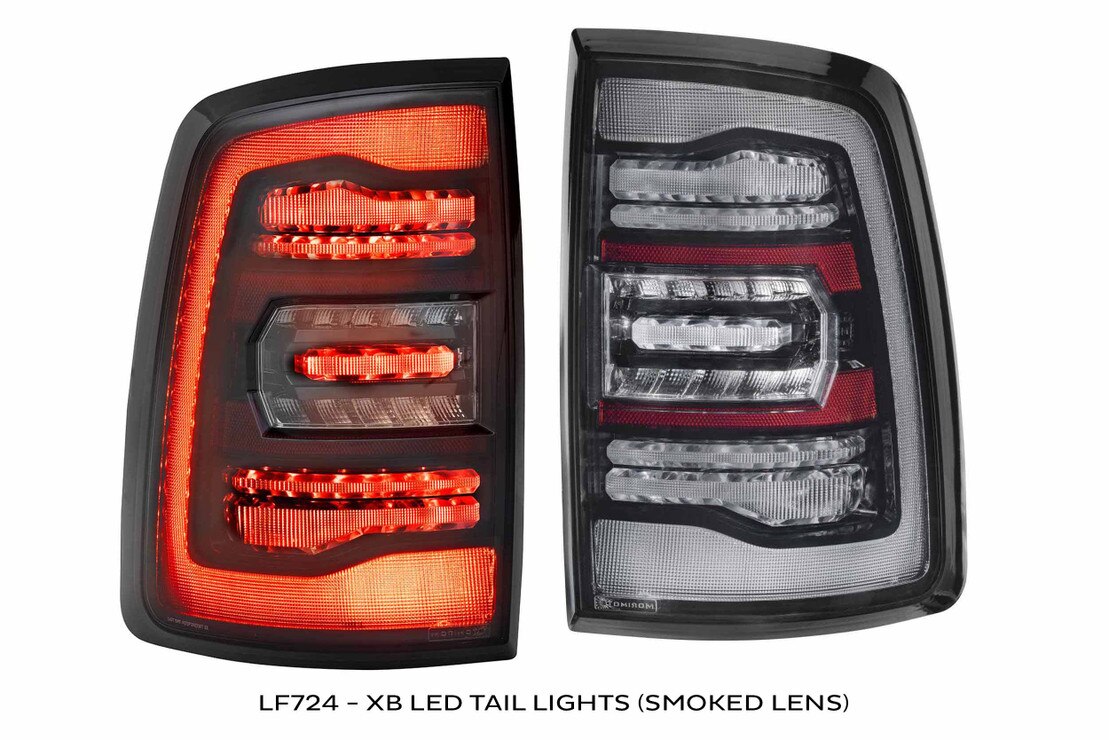

Morimoto XB LED Tail Lights: 09-14 Dodge Ram HD (Smoked Lens) Click for Details
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
XB Evo Headlights (LF2-520) :
Traffic Pattern : LHD / Right Hand Traffic Only
Output (Standard Drivers) : DOT (FMVSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist : 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
Functions : Low, High, Park, Turn, DRL, Welcome, and Lens Heating
Turn Signal Modes : Sequential or Fade Off (Configurable)
DRL Colors : White or Amber (Configurable)
Frost-Free System : Logic-controlled 50w ceramic w/ circulation fans
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating
XRGB Evo Headlights (LF2-520R) :
Traffic Pattern : LHD / Right Hand Traffic Only
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist : 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
Functions : Low, High, Park, Turn, RGB DRL, Welcome Sequence
Turn Signal Modes : Sequential or Fade Off (Configurable)
DRL Colors : RGB (via BT app), White or Amber (Configurable)
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
Side Marker : Smoked side reflex reflector
Lens Details : Polycarbonate with proprietary anti-UV hard coating
XB Evo Hybrid Headlights (LF2-520Y) :
Traffic Pattern : LHD / Right Hand Traffic Only
Output (Standard Drivers) : DOT (FMVSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
Functions : Low, High, Park, Turn, DRL
Turn Signal Mode : Instant On / Fade-Off
DRL Color : White
Internal Finish : Piano Black
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating
Tail Lights :
Input : Dodge Multi-Pin OEM
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source : SSC LED
Brake Light : Red
Parking Light : Red
Turn Signal : Red
COMPATIBILITY
Dodge Ram 2500HD : 2009-2014
Dodge Ram 3500HD : 2009-2014
XB Evo Family : Compatible with 09-14 Dodge Ram HD North American vehicles
Canadian Trucks : Require LF2-520HCA harnesses
Replaces Mopar Part # : 55277409AD, 55277409AE, 55277409AF, 55277410AD, 55277410AE, 55277410AF, 68001485AG, 68001484AG, 68096439AC
Optional Supercharged Drivers : LF2-DRVSC20 fits LF2-520, LF2-520R, and LF2-520Y; off-road use only
XRGB Evo Compliance : RGB DRL and smoked side markers are not DOT compliant; follow all applicable local laws. Optional Supercharged Drivers are also not for on-road use.
Tail Lights : Compatible with 2009-2014 Dodge Ram 2500HD and 3500HD
NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside North America.
