FEATURES & BENEFITS
- Improved Visibility: Double Bi-LED setup provides a bright, wide beam for better road illumination.
- DOT-Approved: Meets all safety regulations for reliable, safe performance.
- Easy Installation: Plug-and-play design with built-in adjusters for simple installation.
- Stylish Lighting: Includes sequential LED daytime running lights and turn signals.
- Durable Construction: UV-coated lenses, PPS housing, and aluminum heat-sinks for long-lasting performance.
WHAT’S INCLUDED

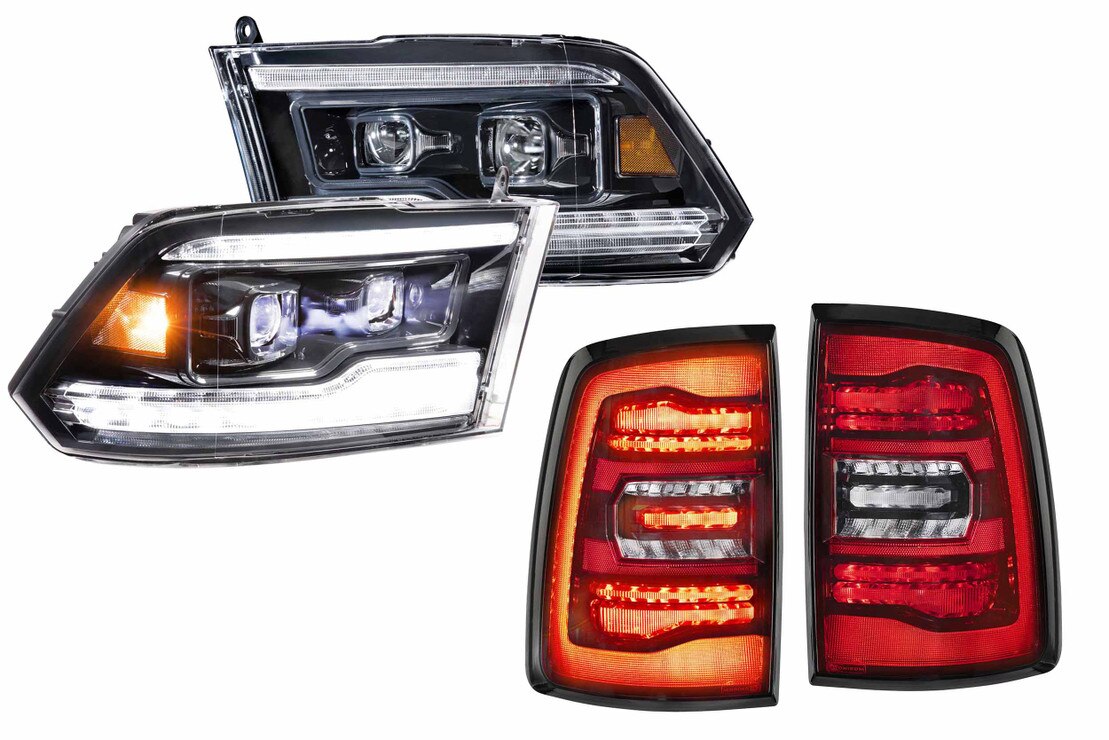

Headlight Choices :

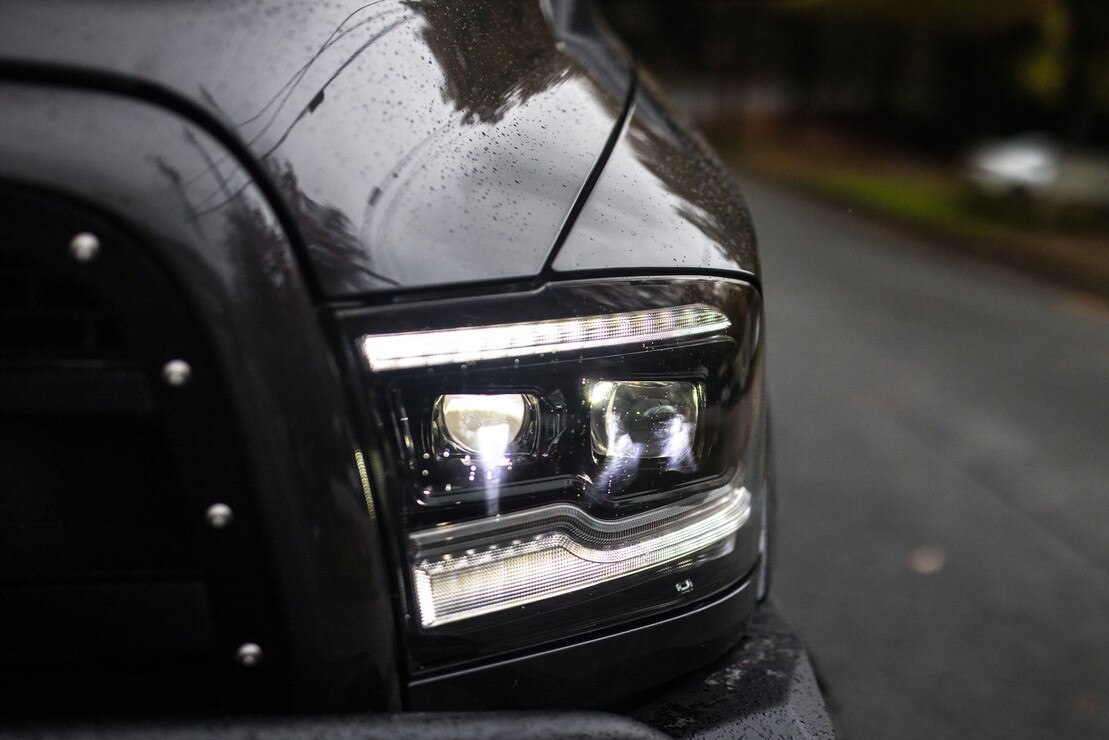

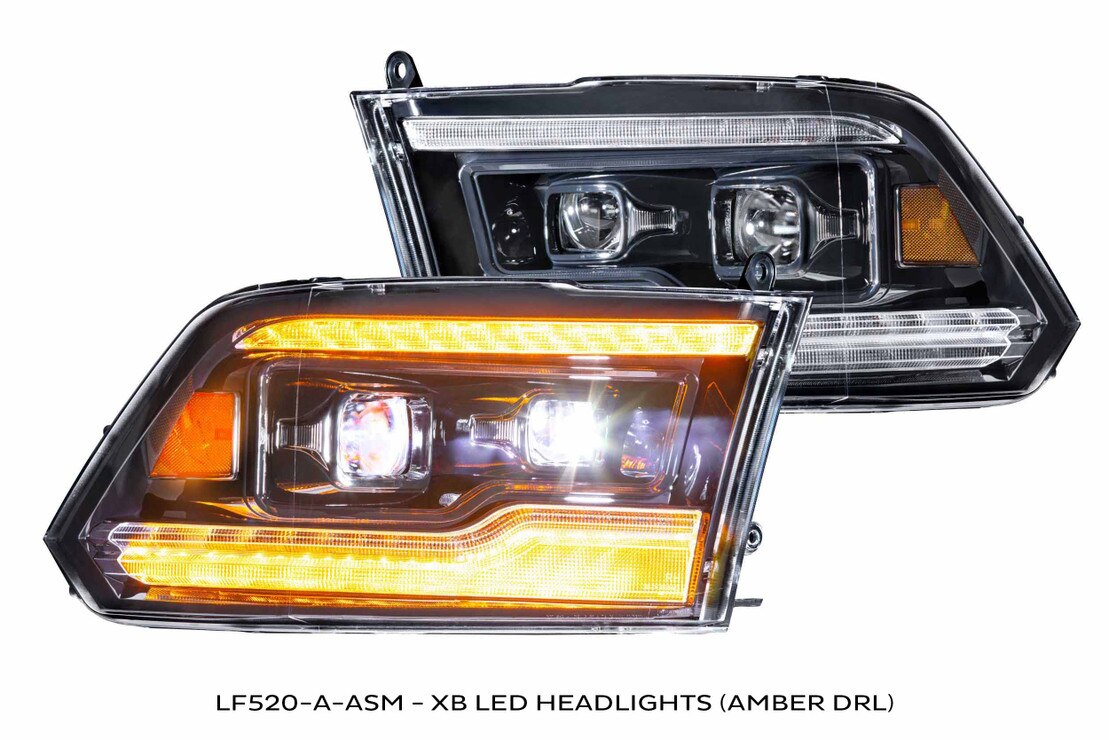

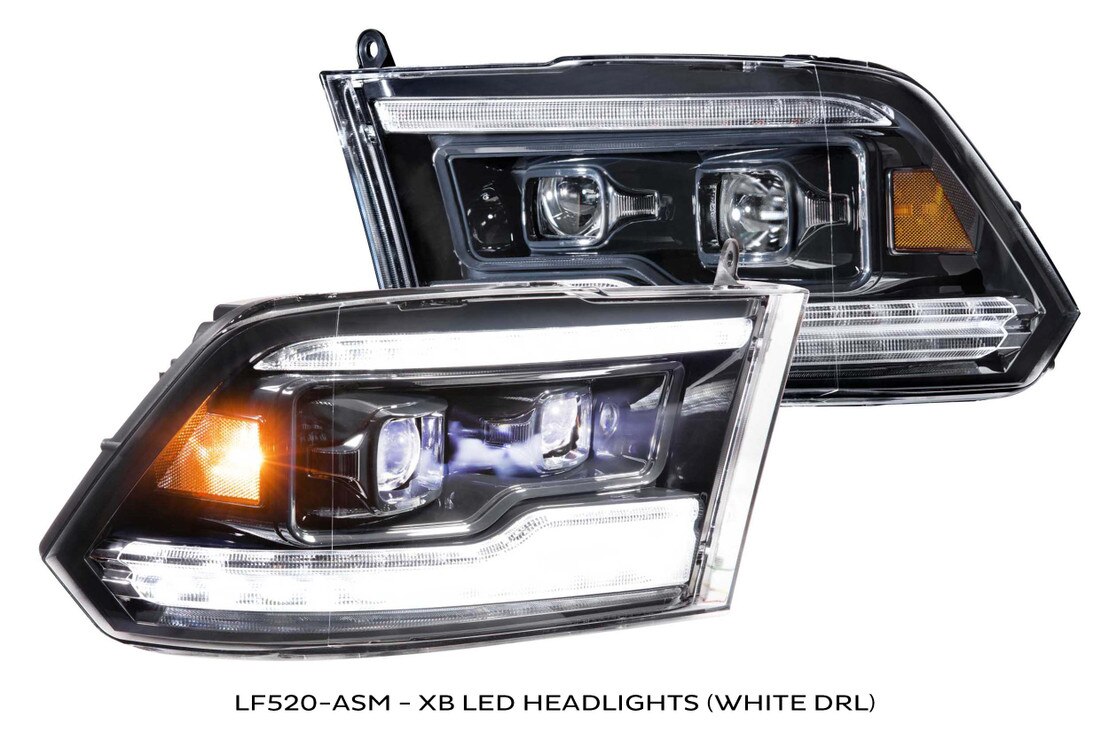

Morimoto XB Evo LED Headlights: 19-24 Ram 1500 Classic (Selectable White / Amber DRL) Click for Details
Morimoto XRGB Evo LED Headlights: 19-24 Ram 1500 Classic (RGB / White / Amber DRL) Click for Details
Morimoto XB Evo Hybrid LED Headlights: 19-24 Ram 1500 Classic (White DRL) Click for DetailsTail Light Choices :

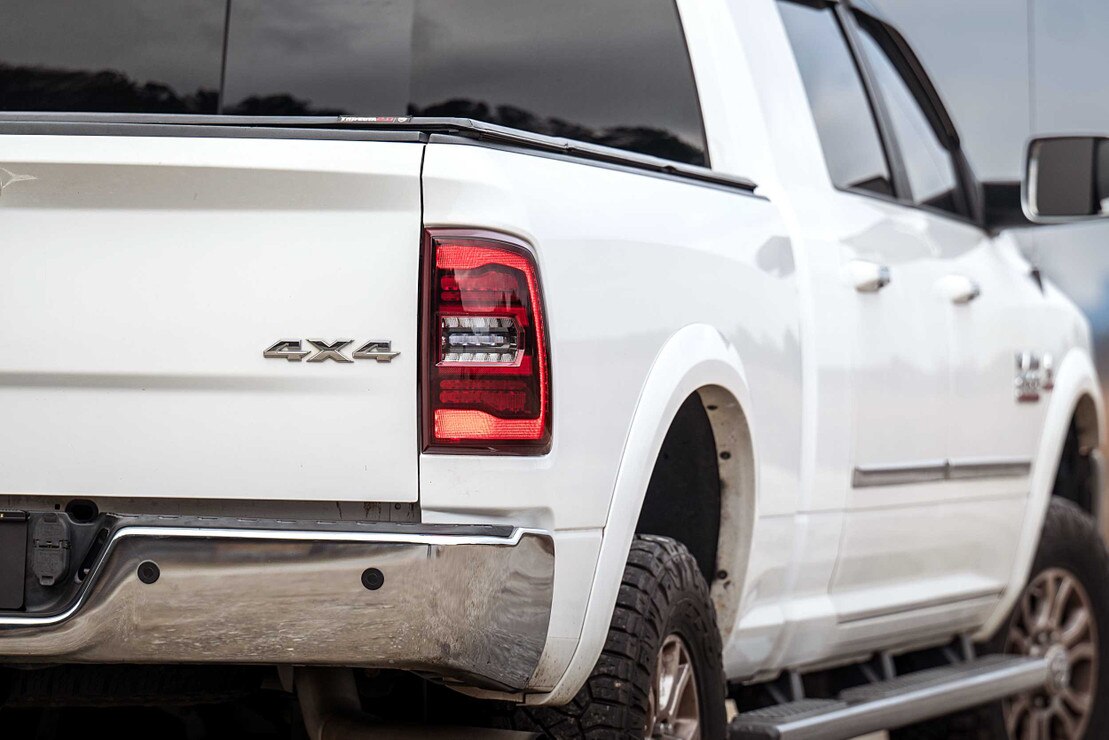

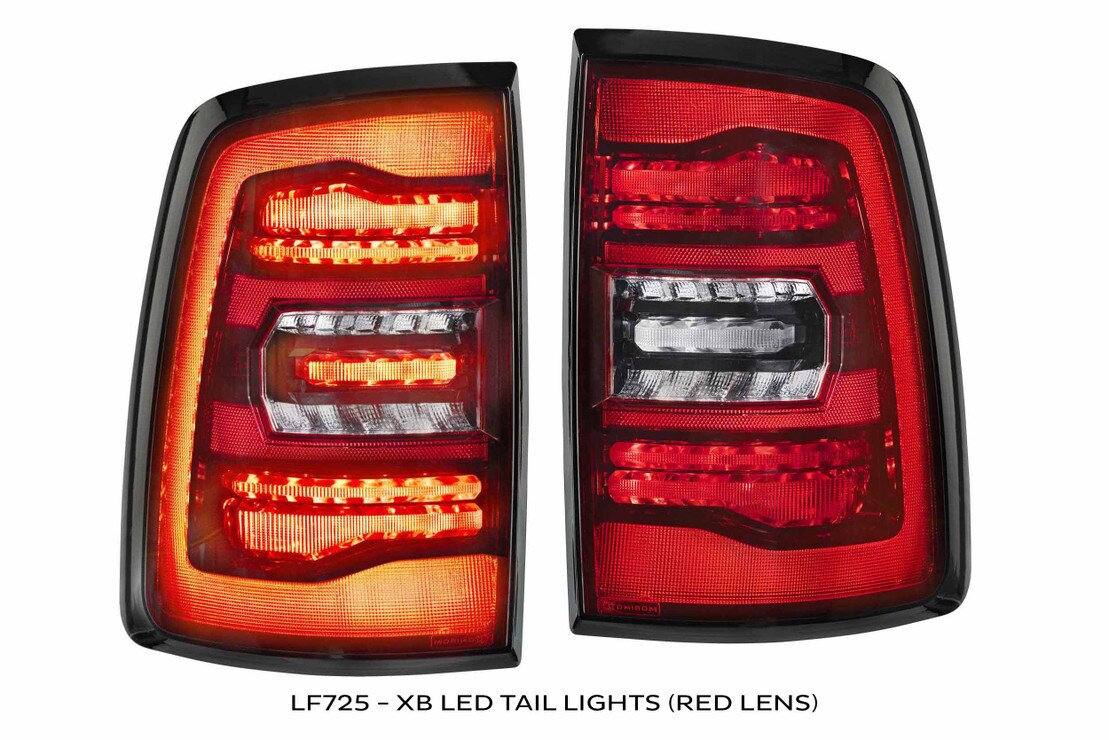

Morimoto XB LED Tail Lights: 19-24 Ram 1500 Classic (Red Lens) Click for Details

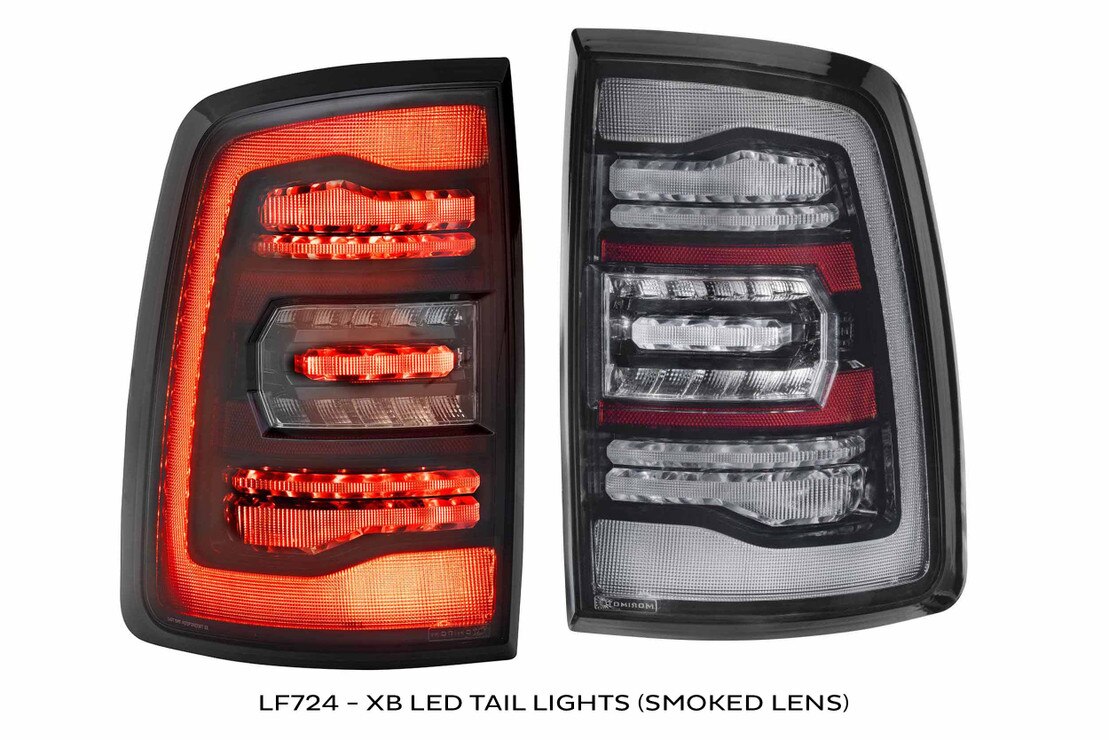

Morimoto XB LED Tail Lights: 19-24 Ram 1500 Classic (Smoked Lens) Click for Details
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS

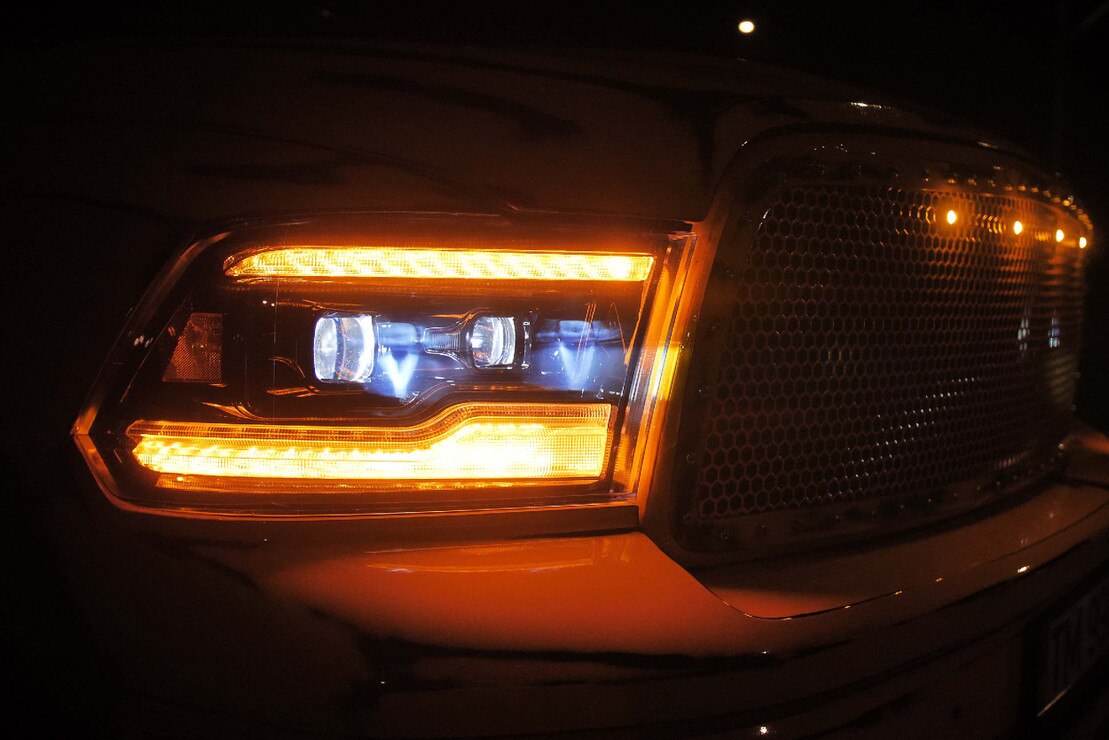

XB Evo Headlights (LF2-520) :
Traffic Pattern : LHD / Right Hand Traffic Only
Output (Standard Drivers) : DOT (FMVSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist : 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
Functions : Low, High, Park, Turn, DRL, Welcome, and Lens Heating
Turn Signal Modes : Sequential or Fade Off (Configurable)
DRL Colors : White or Amber (Configurable)
Frost-Free System : Logic-controlled 50w ceramic w/ circulation fans
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating
XRGB Evo Headlights (LF2-520R) :
Traffic Pattern : LHD / Right Hand Traffic Only
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist : 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
Functions : Low, High, Park, Turn, RGB DRL, Welcome Sequence
Turn Signal Modes : Sequential or Fade Off (Configurable)
DRL Colors : RGB (via BT app), White or Amber (Configurable)
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
Side Marker : Smoked side reflex reflector
Lens Details : Polycarbonate with proprietary anti-UV hard coating
XB Evo Hybrid Headlights (LF2-520Y) :
Traffic Pattern : LHD / Right Hand Traffic Only
Output (Standard Drivers) : DOT (FMVSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
Functions : Low, High, Park, Turn, DRL
Turn Signal Mode : Instant On / Fade-Off
DRL Color : White
Internal Finish : Piano Black
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating

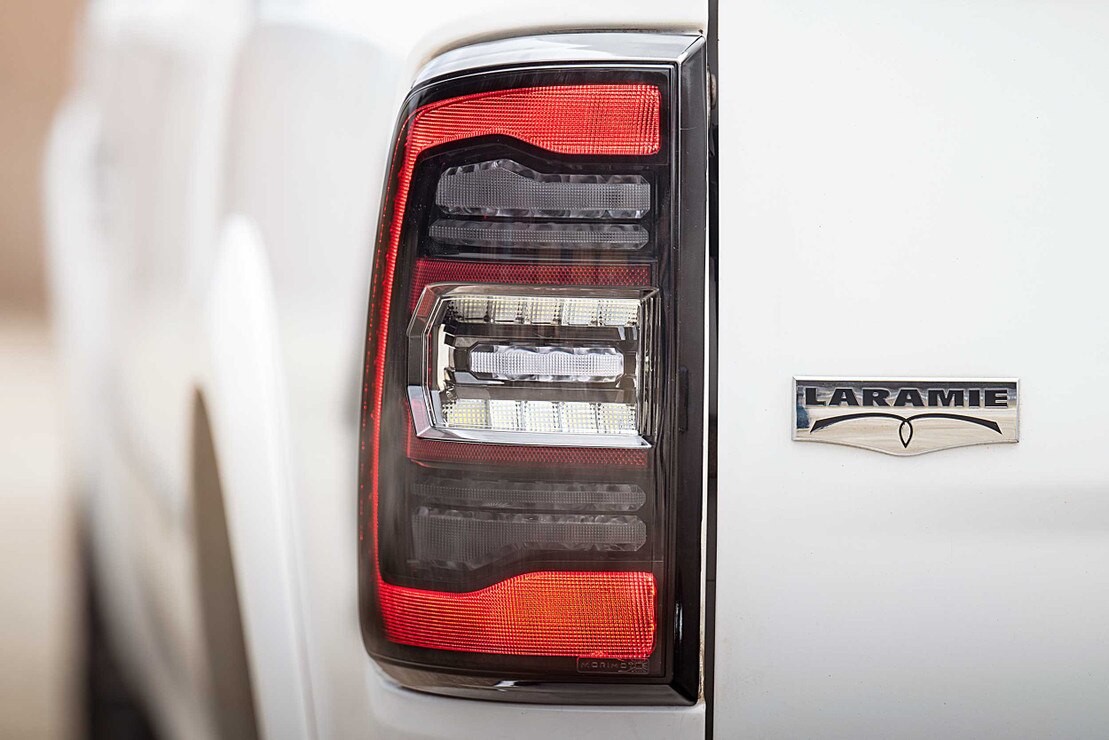

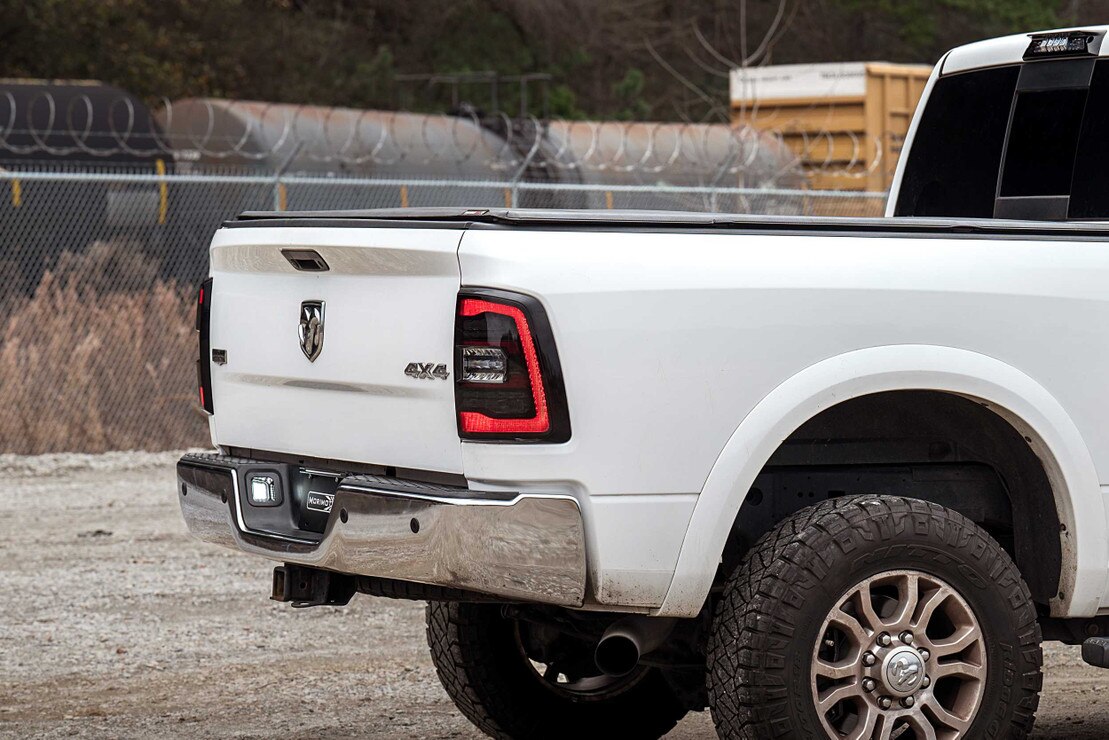

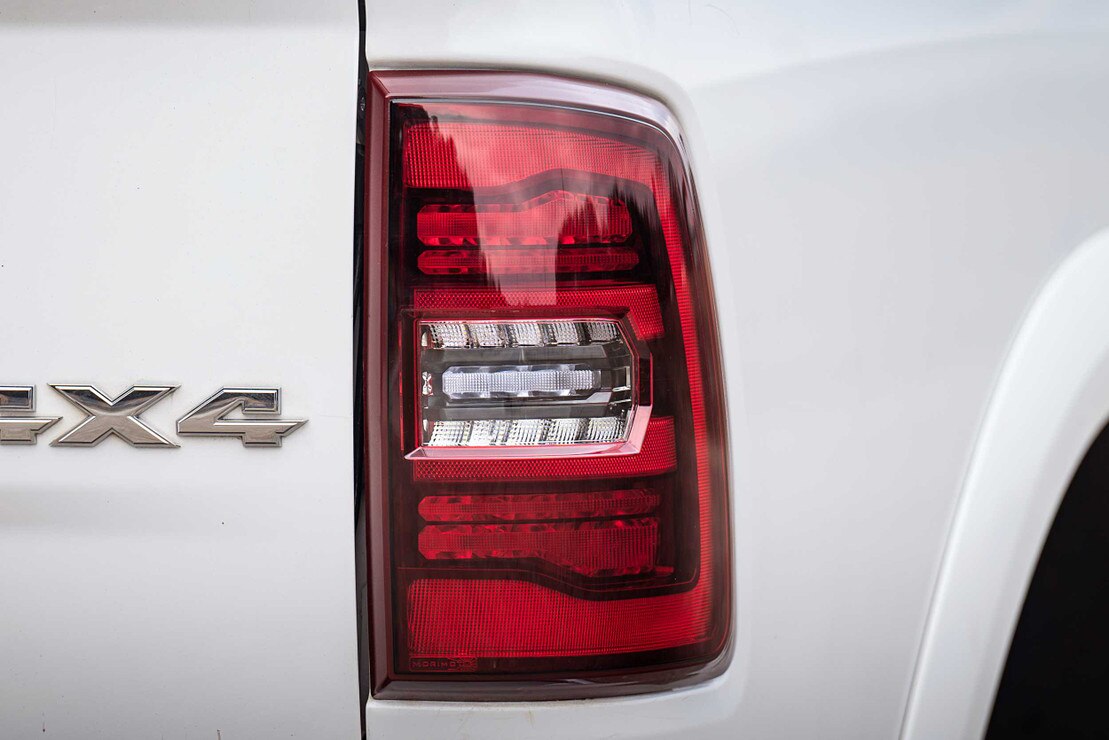

Tail Lights :
Input : Dodge Multi-Pin OEM
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source : SSC LED
Brake Light : Red
Parking Light : Red
Turn Signal : Red
COMPATIBILITY
Ram 1500 Classic : 2019-2024
XB Evo Family : Compatible with 19-24 Ram 1500 Classic North American vehicles
Canadian Trucks : Require LF2-520HCA harnesses
Replaces Mopar Part # : 55277409AD, 55277409AE, 55277409AF, 55277410AD, 55277410AE, 55277410AF, 68001485AG, 68001484AG, 68096439AC
Optional Supercharged Drivers : LF2-DRVSC20 fits LF2-520, LF2-520R, and LF2-520Y; off-road use only
XRGB Evo Compliance : RGB DRL and smoked side markers are not DOT compliant; follow all applicable local laws. Optional Supercharged Drivers are also not for on-road use.
Tail Lights : Compatible with 2019-2024 Ram 1500 Classic
NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside North America.
