Elite Series Type F2 LED Fog Lights (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD83-TRS

$219.95

PRODUCT OPTIONS

PART #: 1 x DD5171P



DESCRIPTION

Elevate your driving experience with the groundbreaking Elite Series Fog Lamps from Diode Dynamics. These state-of-the-art LED fog lamps are engineered to surpass factory and aftermarket alternatives in both performance and style. With a cutting-edge design featuring patent-pending optics, multi-die emitters, and full-copper circuit boards, they deliver a remarkable output that's 5 times brighter than traditional halogens. Enjoy easy plug-and-play installation for instant visibility enhancement in challenging conditions. Experience an unmatched light pattern with their precisely engineered single-piece PMMA lens that adheres to legal on-road standards while providing wider coverage and reduced glare. Choose between a cool white 6000K or a high-contrast selective yellow 3000K option, both ensuring optimal efficiency. The integrated amber accent light adds a touch of sophistication, and these USA-assembled lamps come with an impressive 8-year limited warranty.

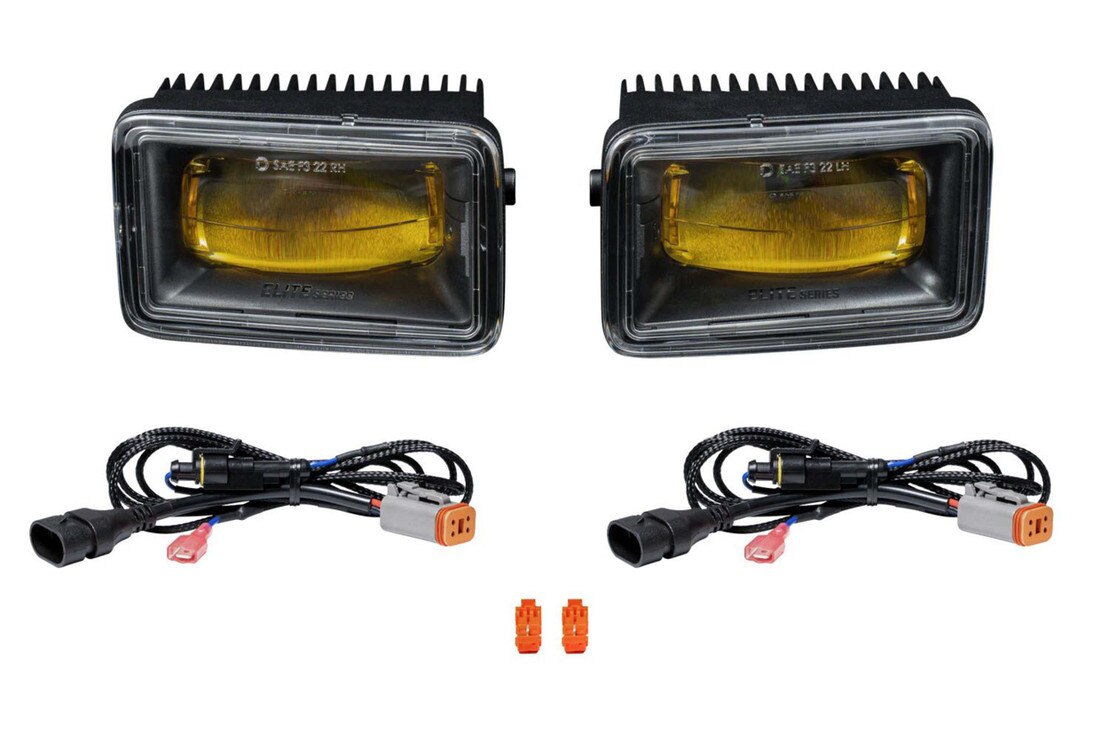

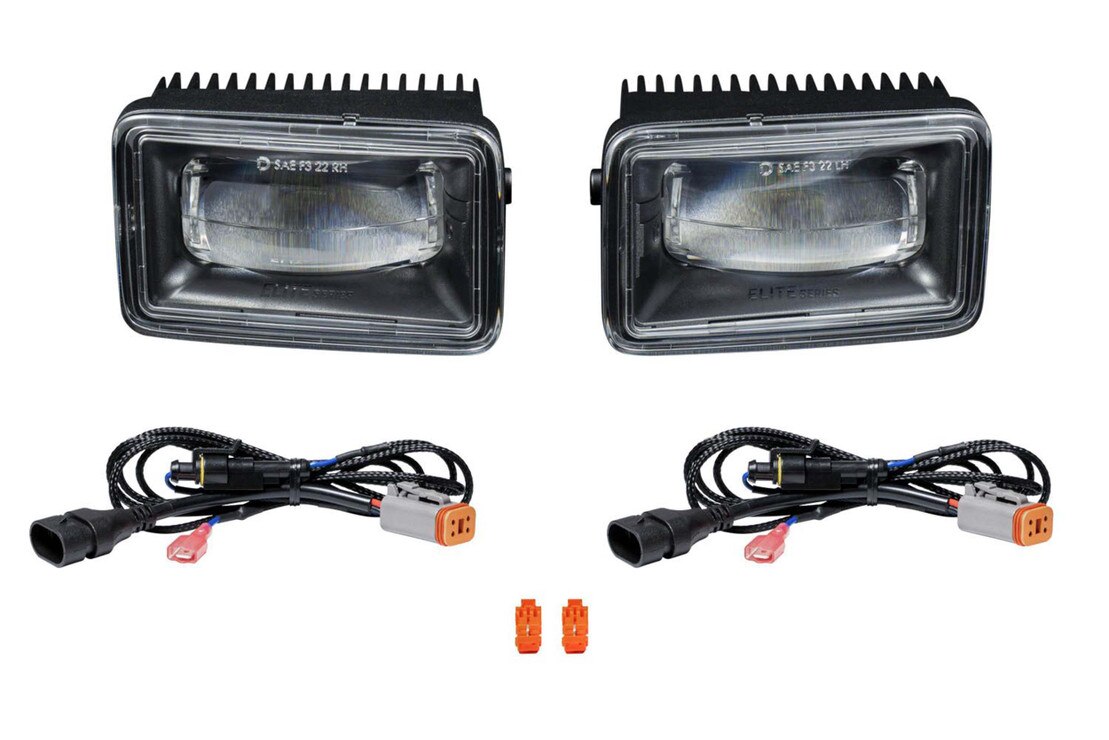

WHAT’S INCLUDED

  • Fog Lights: 2x (One Pair) Elite Series Type F2 Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play 9005/9006 4-pin DT Backlight Tap Wires with T-taps

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof

COMPATIBILITY

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.

  • Ford F-150: 2015-2020

  • Ford Super Duty: 2017-2022
