Bullet Projector Shroud

(0) No Reviews yet
Questions?

Brand: Morimoto

B-SHR-BULLET-TRS

$30.00

PRODUCT OPTIONS

PART #: 2 x S140



Easy Return

DESCRIPTION

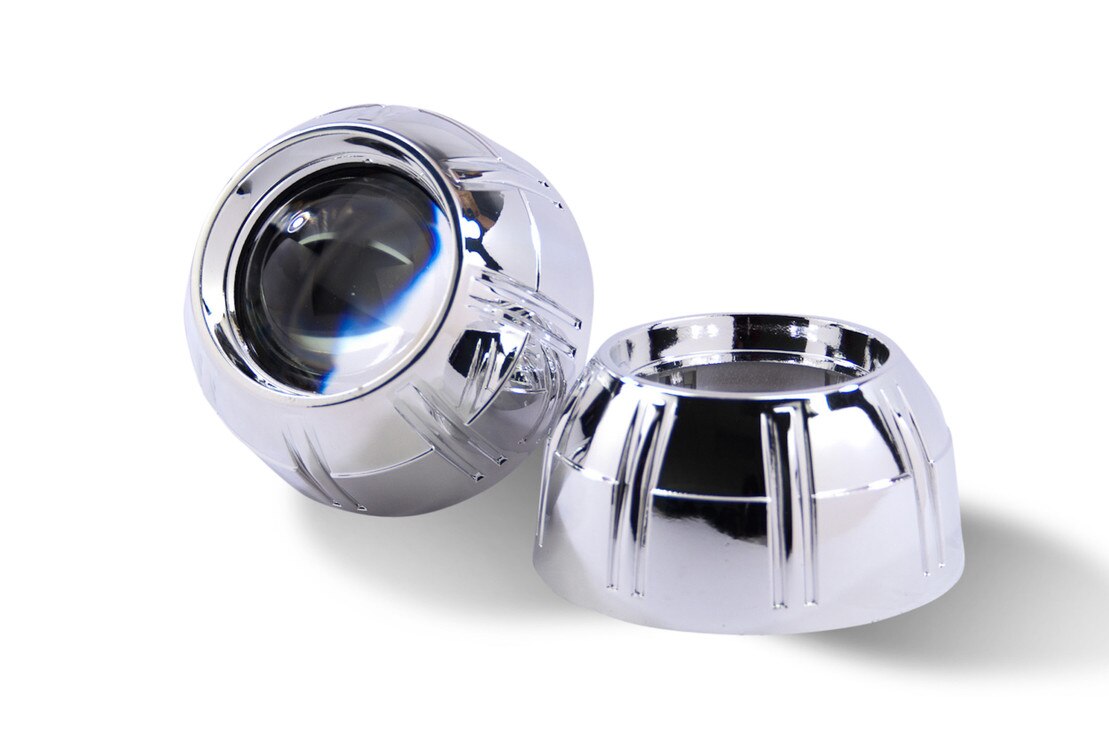

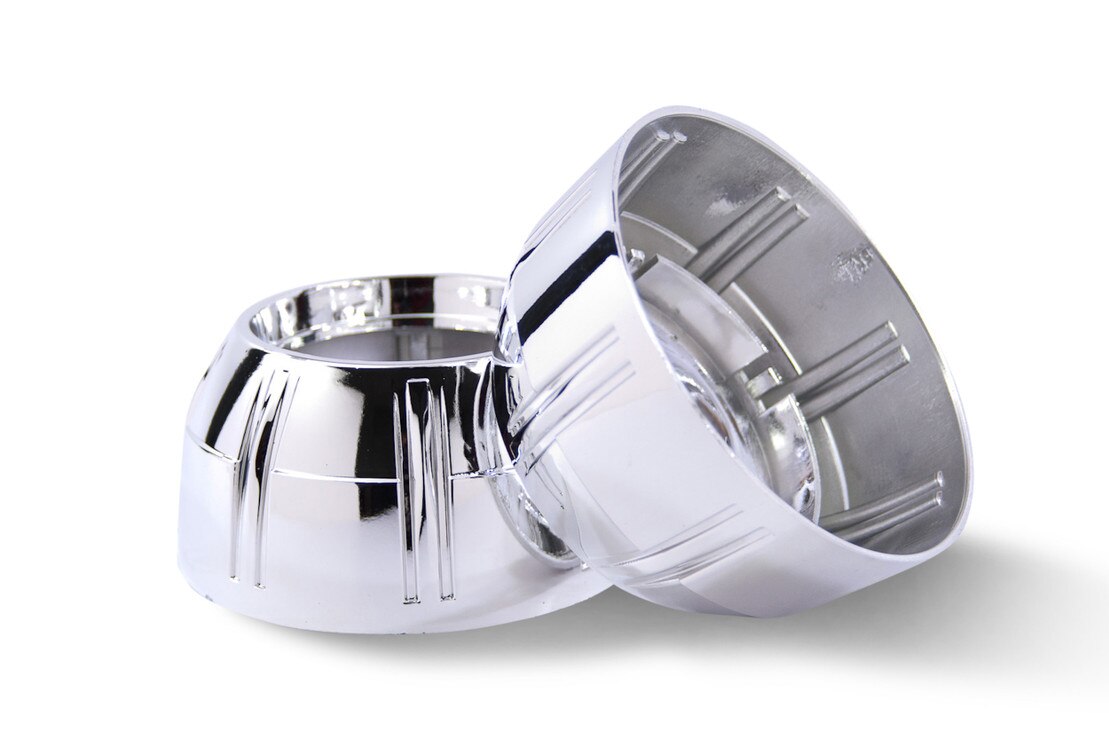

The Bullet projector shrouds offer a sleek and effective solution for customizing projector retrofits. Crafted with precision, these conical-shaped shrouds boast smooth lines and excellent coverage, ensuring a perfect fit for many popular 2.5" and 3" lens projectors. Notably, Morimoto shrouds stand out for their superior quality, featuring durable metalized chrome finishes that outlast cheaper alternatives prone to deformation and flaking. Mounting is made easy with optional Centric Rings, while the inclusion of JB Quik Weld ensures a secure fit over time. Additionally, the shrouds support LED Halos, allowing for further customization and enhanced aesthetics. Trimming, if necessary, is straightforward thanks to their plastic construction, making them adaptable to various headlight housing geometries with the recommended Dremel hand tool.

FEATURES & BENEFITS

  • Perfect Fit: Conical shape ensures ideal compatibility with popular 2.5" and 3" lens projectors.
  • Durable: Constructed from high-quality plastic with long-lasting metalized chrome finishes.
  • Easy Installation: Centric Rings reduce diameter for snug fit, enhancing installation convenience.
  • Customizable: Compatible with LED Halos for personalized projector retrofit appearance.
  • Trimming Flexibility: Plastic material allows easy trimming for optimal projector placement.

WHAT’S INCLUDED

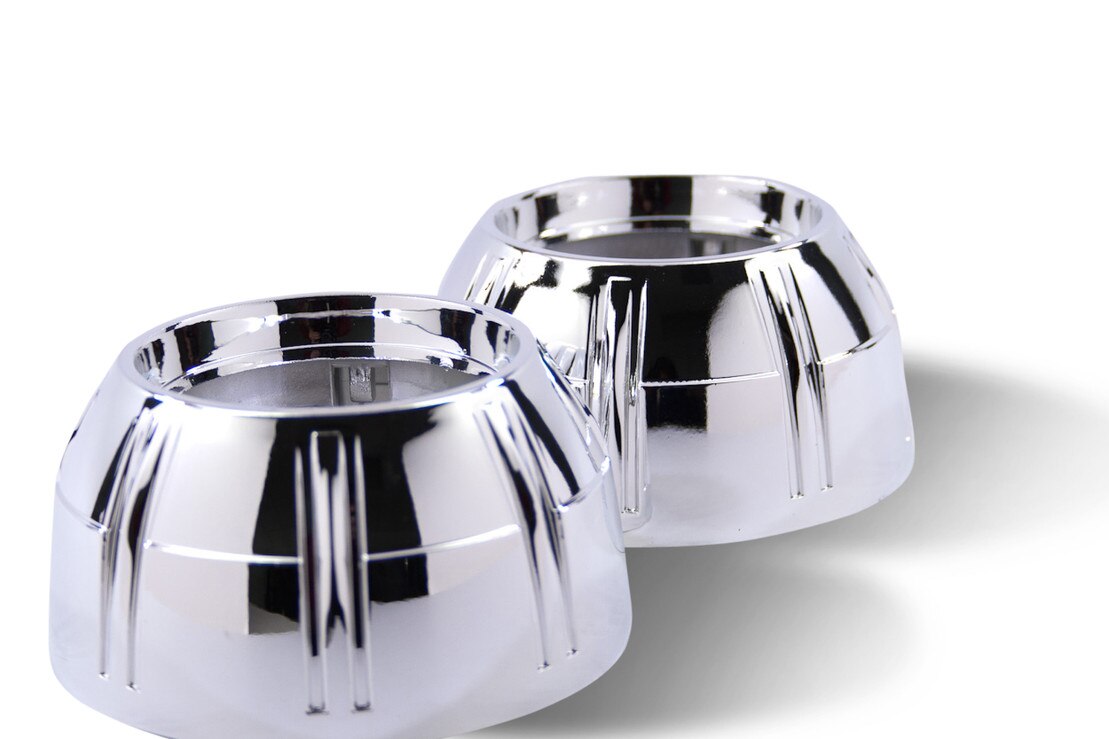

  • Shrouds: 2x (One Pair) Bullet Projector Shrouds

  • Optional Accessories: Centric Rings and Halos

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

TECHNICAL SPECIFICATIONS

  • Dimensions: 120mm DIA, 61mm D

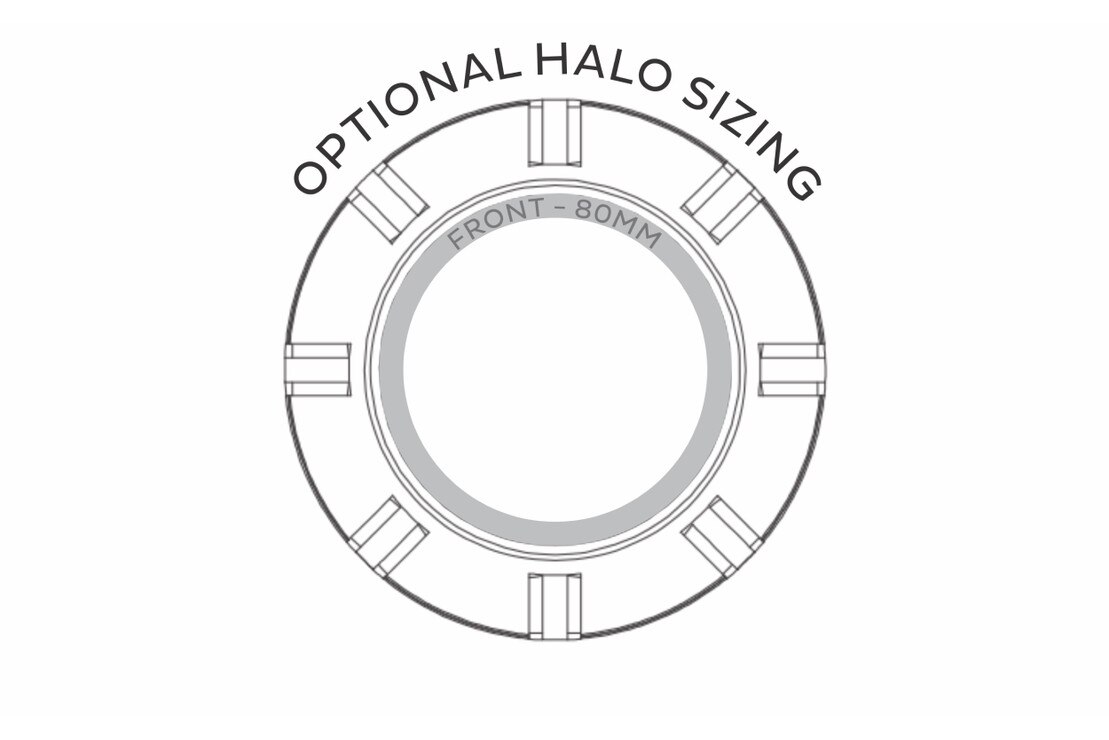

  • Halo Sizing: 80mm (Front)

  • Finish: Forever Finish Chrome

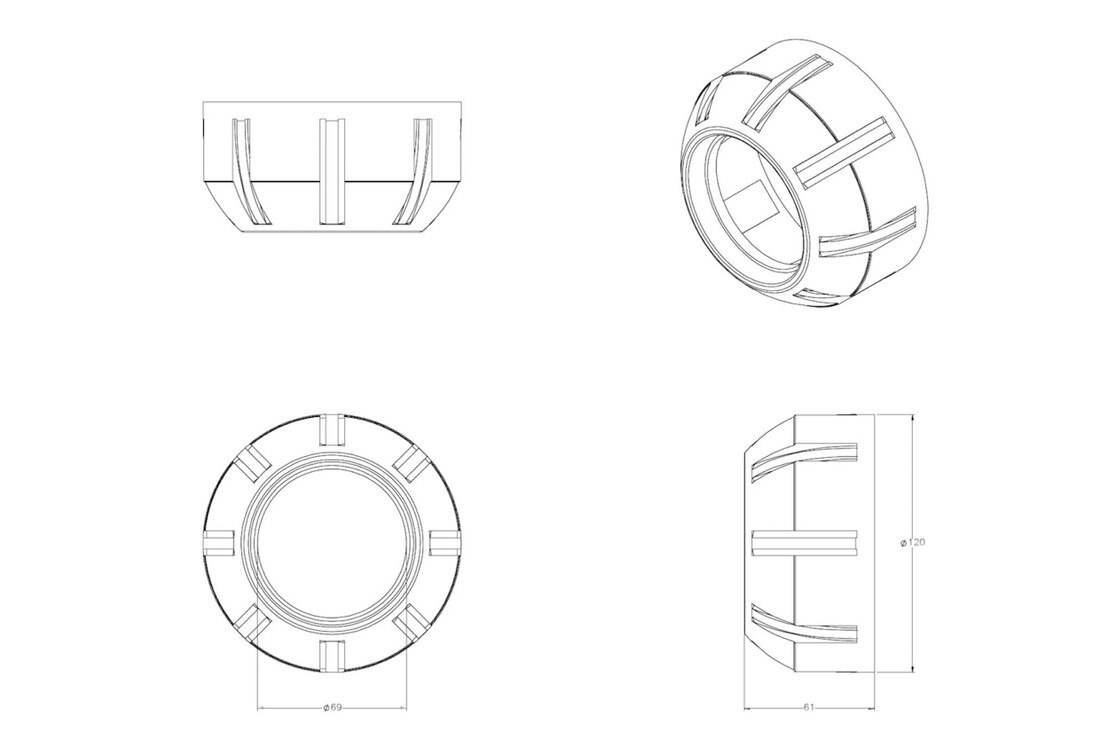

LINE DRAWINGS

COMPATIBILITY

  • MORIMOTO PROJECTORS: All except Matchbox

  • OEM PROJECTORS: Most except TL, LS430, LS460, Q45

  • LENS DIAMETERS: 2.5in and 3in Compatible

  • MOUNTS WITH: Centric Rings and/or JB Quik Weld

INSTALLATION DOCUMENTS

Bullet Proof: A conical shaped shroud with smooth lines, excellent coverage, and a perfect fit for many popular 2.5" and 3" lens projectors makes the Bullet shroud a "killer" choice!


In Comparison: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: Morimoto shrouds are made from the highest quality plastic and have by far the most durable metalized chrome finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their chrome finish easily flakes off.

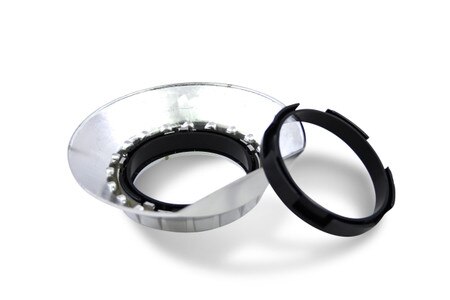

Mounting: Centric Rings are not included by default, but are highly recommended to improve ease of installation on many projectors. The Centric Rings are simple reducers that clip into the shroud to reduce the inside diameter, making them more of a "press fit" onto the lens holder of the projector. JB Quik Weld is also recommended in order to prevent the shrouds from vibrating loose over time.

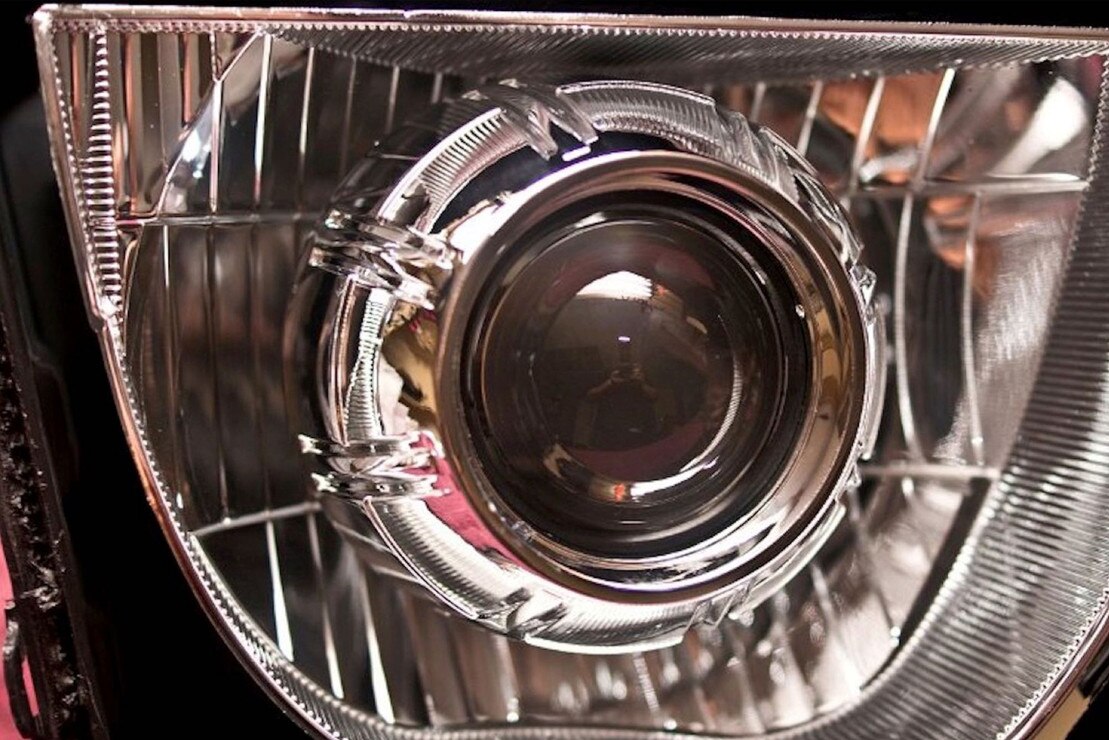

LED Halos: Are a unique and effective way to further customize the look of your projector retrofit. The Profile Pivot (switchback) and Profile Pixel (RGB) systems are easy to mount on the front of your shrouds, are reliable, and of course awesome looking. To determine which size is best for you - check out the size-guide in the "In Action" images section below.


Trimming: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector, or fit within the geometry of your headlight housing; it's normal. Luckily, they're made of plastic - making that easily possible. We recommend a Dremel hand tool with EZ Lock cutting wheels to make the job easy.
